Description

You can configure your radio to write a blackbox log file in RAM/flash to be read with blackbox explorer. It enables one to analyze the behavior of your motors and sensors.

Setup

On your radio

On your radio, you will need to create a new AUX to enable/disable blackbox.

INCOMPLETE SECTION OR ARTICLE
This section/article is being written and is therefore not complete.
Thank you for your comprehension.

On Betaflight

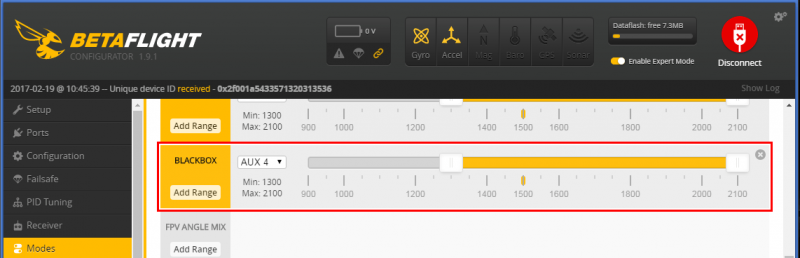

Open Betaflight configurator and go to the Modes menu. From here, associate your AUX to the BLACKBOX item:


If your blackbox is full, you may need to first erase its content:


During flight

During the flight, enable the blackbox by activating the appropriate AUX (the one you have setup on your radio).

Note
Notice that a 14 seconds recording session resulted in a 700KB+ file.

Read blackbox

Get blackbox log file

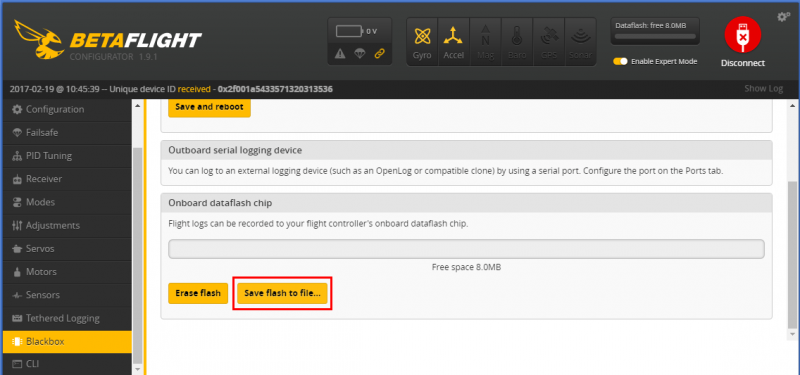

From Betaflight configurator, go to Blackbox > Save to file. It will save a *.BFL file that can be read in Blackbox Explorer.

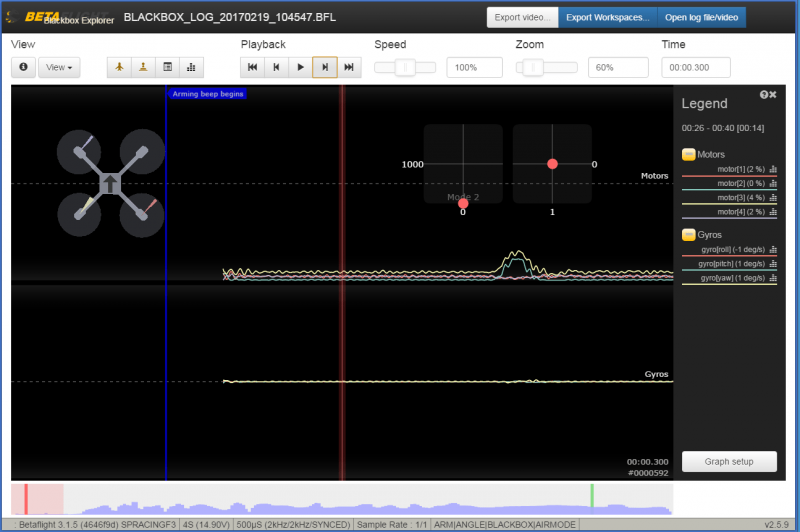

Analyze
