Structured Exception Handling (SEH)

Description

  • Windows error handling mechanism
  • When an error occurs, the exception handler information is stored on the stack
  • Use of __try and __except keywords in C++
  • Some packers use SEH: When an exception is triggered, execution continues in the exception handler

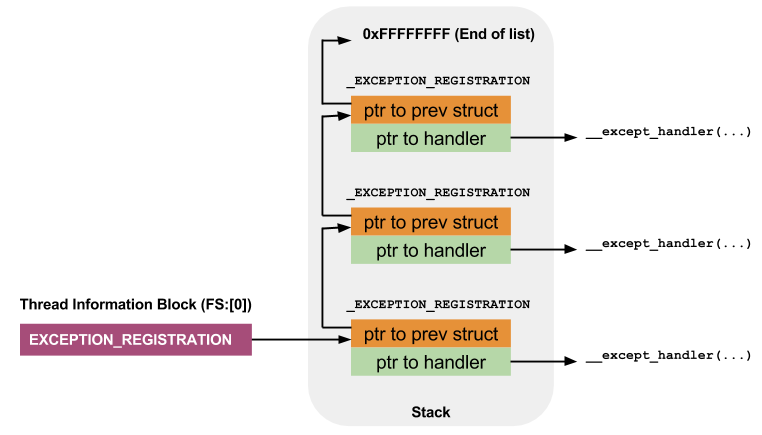

SEH Chain


The _EXCEPTION_REGISTRATION structure has two components:

  • A pointer to an exception handler function
  • A pointer to the previous _EXCEPTION_REGISTRATION record

The SEH chain:

  • The address of the first record is always stored at the address pointed to by the FS register (FS:[O])
  • The chain ends when the OS encounters OxFFFFFFFF

Misusing Structured Exception Handlers

SEH provides a flow control that is difficult to be understood by disassemblers and that fools debuggers.
