Jump instruction with constant condition

Description

Byte code
┌────┬────┬────┬────┬────┬────┬────┬────┬────┐
│ 33 │ C0 │ 74 │ 01 │ E9 │ 58 │ C3 │ 68 │ 94 │
└────┴────┴────┴────┴────┴────┴────┴────┴────┘
Wrong interpretation
┌─────────┬─────────┬────────────────────────┐
│XOR      │JZ       │JMP ...                 │
└─────────┴─────────┴────────────────────────┘
33 C0               xor     eax, eax
74 01               jz      short near ptr loc_4011C4+1
                    loc_4011C4:                     ; CODE XREF: 004011C2j
                                                    ; DATA XREF: .rdata:004020AC0
E9 58 C3 68 94      jmp     near ptr 90D0D521h
Good interpretation
┌─────────┬─────────┬────┬────┬────┬─────────┐
│XOR      │JZ       │    │POP │RET │         │
└─────────┴─────────┴────┴────┴────┴─────────┘
              │            ▲
              └────────────┘
33 C0               xor     eax, eax
74 01               jz      short near ptr loc_4011C5
            ; -------------------------------------------------------------------
E8                  db 0E9h
            ; -------------------------------------------------------------------
                    loc_4011C5:                   ; CODE XREF: 004011C2j
                                                  ; DATA XREF: .rdata:004020AC0
58                  pop     eax
C3                  retn

Example

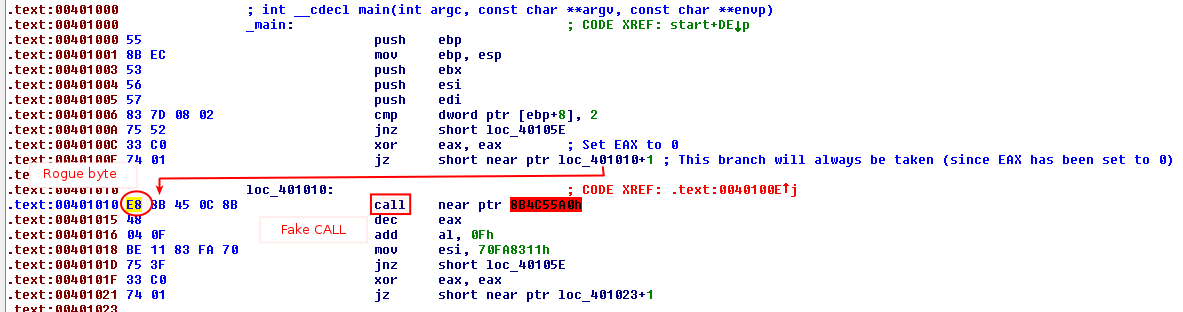

Below is an example of this technique:


Notice that the conditional jump (jz) at 0x40100E is actually unconditional since EAX is set to 0 just one instruction before (xor eax, eax at offset 0x40100C). It jumps to the middle of the 5-byte fake CALL. Let's adjust this in IDA-Pro. Place your cursor at the offset 0x401010 and press
D

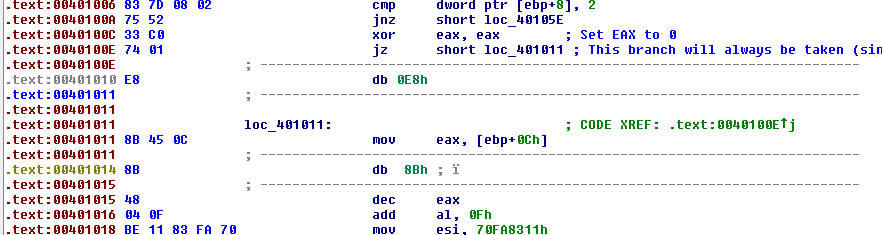

to transform the block to DATA. Here is what it results in:

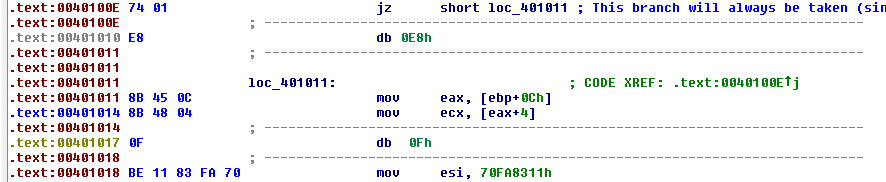

Now, let's convert the block from 0x401011 back to CODE by pressing
C
. You will need to do it several times:

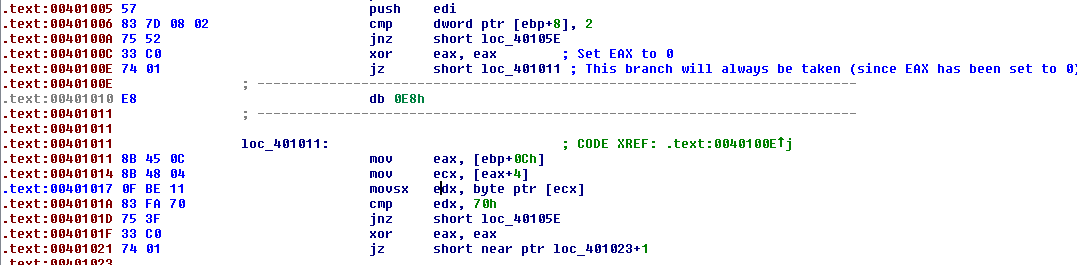

Once all modifications have been done, you still need to tell IDA-Pro that this block of code is a function. To do that, select the entire function code, from the beginning of the function till the return instruction and press
P
.
