Lithium-Ion (li-ion)

Voltage

Maximum voltage 4.2V/cell
Minimum voltage 2.5V/cell
Storage voltage 2-3V/cell at -20° to 25°C

How to build a lithium-ion battery?

Serie or parallel?

  • If you need more voltage, assemble your cells in serie (e.g. 6S1P)
  • If you need more power, assemble your cells in parallel (e.g. 3S2P)

For example, with US18650VTC6 cells of 3,000mA / 30A, you'll have:

Voltage Total capacity Discharge rate
Serie (e.g. 6S1P) 25.2V (6 x 4.2V) 3,000mA 30A
Parallel (e.g. 3S2P) 12.6V (3 x 4.2V) 6,000mA 60A (2 x 30A)

What you'll need

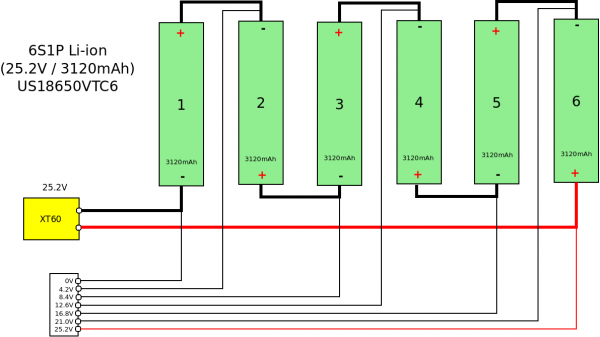

Build a 6S1P li-ion

Cabling


Building process

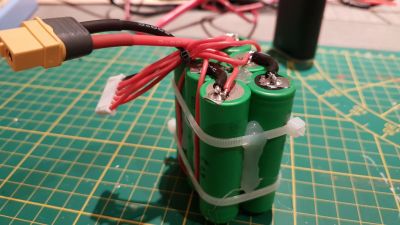

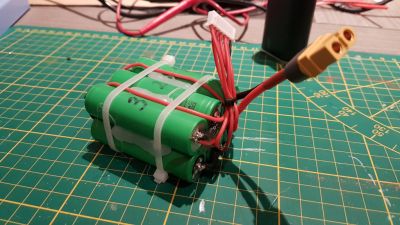

Drone-diy-build-li-ion-6s1p-build01.jpg Drone-diy-build-li-ion-6s1p-build02.jpg

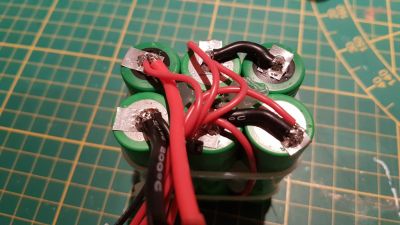

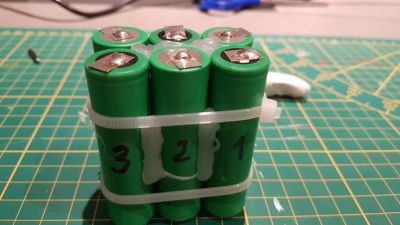

Drone-diy-build-li-ion-6s1p-build03.jpg Drone-diy-build-li-ion-6s1p-build04.jpg
