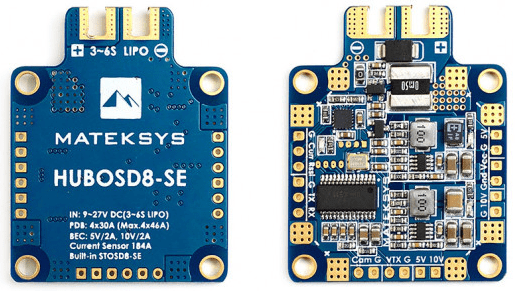

  • Input voltage range: 9 - 27VDC(3~6s LiPo) w/ TVS protection
  • PDB: 4x30A (Max.4x46A)
  • Regulated 5V(POSCAP filtered) and 10V(MLCC filtered) outputs
  • Current Sensor 184A
  • Built-in STOSD8-SE
  • Physical:
    • 2oz copper, 4-layers & 2mm PCB.
    • 1x Battery input, 4x ESC outputs. 2x BEC 5V outputs, 2x BEC 10V outputs.
    • Camera signal & Gnd pads, Video Transmitter Signal & Gnd pads
    • 1x Serial port (RX, TX, G)
    • RSSI input pad & Current sensor output pad
    • Dimensions: 46x36x4mm, Weight: 9g
    • Mounting holes 30.5mm square spacing,Φ3mm
PDB (ESC outputs)
  • Continuous current: 30A per output
  • Peak current (5 seconds/minute): 46A per output
BEC 5V outputs
  • Designed for RC Receivers, Flight controllers, OSD, and Servos.
  • Voltage: 5.0 +/- 0.1VDC
  • Continuous current: 1.5 Amps (Max.2A 10s/minute)
  • Output Ripple: 23mV (VIn=24V, [email protected] load)
  • Short-circuit tolerant (2 seconds/minute)
BEC 10V outputs
  • Designed for Video TX or FPV camera.
  • Voltage: 10.0 +/- 0.2VDC
  • Continuous current: 1.5 Amps (Max.2A 10s/minute)
  • Output Ripple: 15mV (VIn=24V, [email protected] load)
  • Short-circuit tolerant (2 seconds/minute)
  • 10V can be used to power cameras labeled as 12V
  • The 3S LiPo input voltage should be 10.8V plus
Current Sensor
  • 184A Max.
  • Current signal output: 3.3V ADC for Flight controler
  • Tips: If current signal pad is connected to FC, The CURRENT METER must be ON in FC GUI.
  • Scale the output voltage to milliamps(1/10th mV/A): 179
