Encoded-Resource-in-PE

Description

Malware can embed resources (it's often the case for launchers/loaders but these resources can be encrypted. This article hows how you can decrypt these resources in python.

Context

In this example, we'll take the executable Lab12-02.exe from the Practical Malware Analysis book. The executable contains a resource section as depicted below:

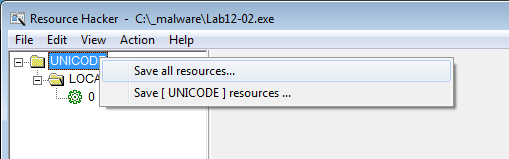

This resource can be extracted with ResourceHacker:

In this case though, the resource is encrypted:

$ file Data_1.bin
Data_1.bin: data
$ xxd Data_1.bin | head
0000000: 0c1b d141 4241 4141 4541 4141 bebe 4141  ...ABAAAEAAA..AA
0000010: f941 4141 4141 4141 0141 4141 4141 4141  .AAAAAAA.AAAAAAA
0000020: 4141 4141 4141 4141 4141 4141 4141 4141  AAAAAAAAAAAAAAAA
0000030: 4141 4141 4141 4141 4141 4141 a141 4141  AAAAAAAAAAAA.AAA
0000040: 4f5e fb4f 41f5 488c 60f9 400d 8c60 1529  O^.OA.H.`.@..`.)
0000050: 2832 6131 332e 2633 202c 6122 202f 2f2e  (2a13.&3 ,a" //.
0000060: 3561 2324 6133 342f 6128 2f61 050e 1261  5a#$a34/a(/a...a
0000070: 2c2e 2524 6f4c 4c4b 6541 4141 4141 4141  ,.%$oLLKeAAAAAAA
0000080: 568c 8ad0 12ed e483 12ed e483 12ed e483  V...............
0000090: faf2 ef83 13ed e483 faf2 ee83 01ed e483  ................

Analyze decryption routine

Parameters of sub_401000

Let's analyze where the code accesses the resource and how it reads it. We know that the decryption routine is sub_401000 at offset 0x00401425 (we will analyze this function later):

This function accepts 3 parameters: var_8, dwSize and 0x41.

First, FindResource is called to find the resource in UNICODE > LOCALIZATION and a handle to this resource is saved to hResInfo:

.text:00401362 loc_401362:                             ; CODE XREF: extractResource+2D�j
.text:00401362                 push    offset Type     ; "UNICODE"
.text:00401367                 push    offset Name     ; "LOCALIZATION"
.text:0040136C                 mov     eax, [ebp+hModule]
.text:0040136F                 push    eax             ; hModule
.text:00401370                 call    ds:FindResourceA
.text:00401376                 mov     [ebp+hResInfo], eax

Then, this handle is used by LoadResource:

.text:00401386                 mov     ecx, [ebp+hResInfo]
.text:00401389                 push    ecx             ; hResInfo
.text:0040138A                 mov     edx, [ebp+hModule]
.text:0040138D                 push    edx             ; hModule
.text:0040138E                 call    ds:LoadResource

The size of the resource is gathered with a call to SizeofResource and saved to dwSize:

.text:004013B7 mov     ecx, [ebp+hResInfo]
.text:004013BA push    ecx             ; hResInfo
.text:004013BB mov     edx, [ebp+hModule]
.text:004013BE push    edx             ; hModule
.text:004013BF call    ds:SizeofResource
.text:004013C5 mov     [ebp+dwSize], eax

Then memory is alloated with VirtualAlloc and saved to var_8:

.text:004013D0 push    4
.text:004013D2 push    1000h           ; flAllocationType
.text:004013D7 mov     eax, [ebp+dwSize]
.text:004013DA push    eax             ; dwSize
.text:004013DB push    0               ; lpAddress
.text:004013DD call    ds:VirtualAlloc
.text:004013E3 mov     [ebp+var_8], eax

As a conclusion, our 3 parameters are defined as follows:

#	Parameter	Description
1	var_8	Memory allocation for the decoded resource
2	dwSize	Size of the resource
3	0x41	Hex key (likely to be used as a decryption key)

Analysis of sub_401000

Now, we can analyze sub_401000. This function is processing bytes of the resource in a loop and XOR's each of them with 0x41 (the key previously seen):

Decrypt the resource

Python script

It's trivial to decode the resource in python:

#!/usr/bin/env python
b = bytearray(open('Data_1.bin', 'rb').read())
for i in range(len(b)):
    b[i] ^= 0x41
open('out_file', 'wb').write(b)

The decoded resource is a valid PE:

$ python decode.py
$ file out_file
out_file: PE32 executable (console) Intel 80386, for MS Windows

WinHex

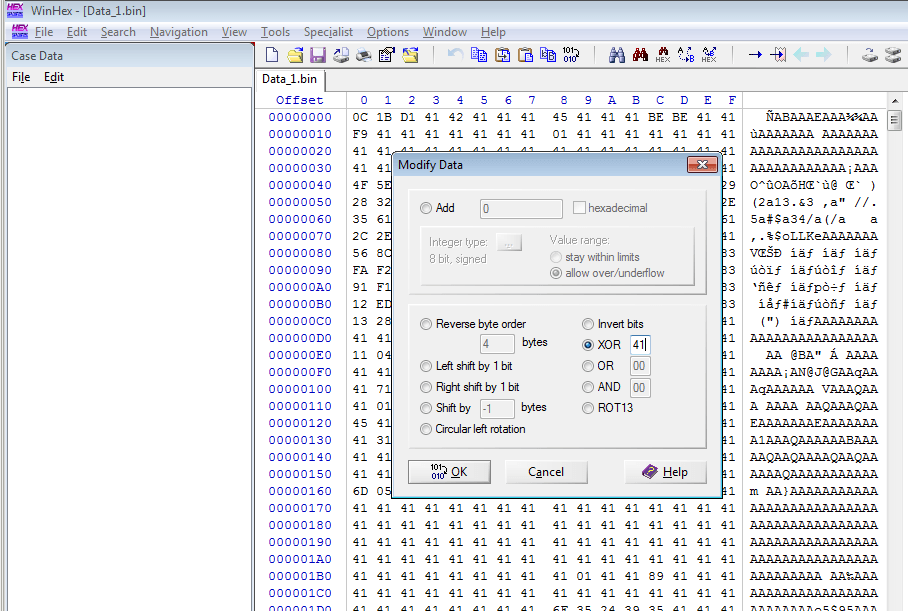

Using WinHex, you can also decrypt the resource (Edit > Modify Data > XOR):
