Description

FakeNet is a tool developed by Andrew Honig and Mike Sikorski. Its objective is to aid the malware analysts in the dynamic analysis of malicious softwares. The tool simulates a network so that malware interacting with a remote host continues to run allowing the analyst to observe the malware’s network activity from within a safe environment. It is able to intercept any traffic, including DNS, HTTP, HTTPS, SMTP, SMTP over SSL and has the ability to display SSL based traffic (e.g. HTTPS, SMTP/SSL) in clear.

For a video demonstration of FakeNet, go here: https://cc.readytalk.com/cc/playback/Playback.do?id=edviq7

Installation

Configuration

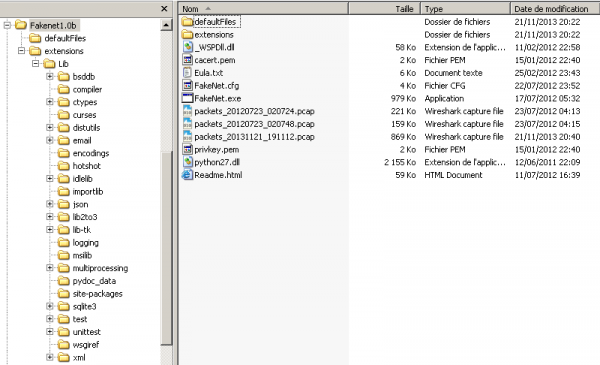

Structure

defaultFiles directory
Default files that will be returned as HTTP responses (e.g. jpg, pdf, exe files) to the malware requests
You can modify these files to fit your needs, or even add more extensions in case the malware you're analyzing requires them
extensions/ directory
FakeNet extensions
cacert.pem and privkey.pem files
Certificate related files (in case the malware uses a SSL connection). See example usages: HTTPS and SMTP over SSL.
FakeNet.cfg
FakeNet configuration file
FakeNet.exe
FakeNet main program
*.pcap files
Saved network captures files. See the PacketDumpOptions section for more information.
Readme.html
Help file (notice that this is also the file that will be returned to HTTP requests)

Configuration file

Configuration file

FakeNet can be configured by editing the FakeNet.cfg file.

PacketDumpOptions

Note
FakeNet has the ability to reconstruct a packet capture that can be opened in Wireshark or other pcap compliant packet analyzer. This should not be confused with a packet capture. Windows does not have a local network adapter for capturing packets which is why Wireshark and other pcap based sniffers can not listen on localhost. Instead of capture packets on the wire FakeNet will dump all packets that it receives to disk in a pcap compatible form so that they can be opened later. This can be useful when dealing with binary data that is not well displayed by FakeNet.
DumpPackets
If this option is set then FakeNet will create a packet capture file containing a reconstruction of the network traffic. This is not the same as a packet capture created with a network sniffer.
Value: Yes|No. Default: Yes
FilePrefix
File prefix for the dumped packets
Notice that the current date and time will follow your prefix (e.g. packets_20131121_191112.pcap)
Default value: packets

DNSOptions

ModifyLocalDNS
This option governs whether the script will modify the local DNS server settings so that DNS queries are routed to the localhost.
Value: Yes|No. Default: Yes

InvasiveOptions

Note
In order to support the EnableDummyService and RedirectAllTraffic options FakeNet must install hooks into Winsock on the host machine. Currently, these options are only supported on Windows XP. Until the program is out of beta status it is not recommended to use these options without a VM. FakeNet uses a Layered Service Provider(LSP) in order to hook Winsock. Some malware uses LSPs to achieve malicious effects and this may cause compatibility problems with FakeNet and result in undefined behavior.
EnableDummyService
If enabled then FakeNet will listen for and display any traffic on any port that isn’t already open. This option installs invasive hooks.
Value: Yes|No. Default: Yes
RedirectAllTraffic
If enabled then FakeNet will redirect all traffic for any IP address to 127.0.0.1. This is useful in capturing traffic that uses hard coded IP addresses. Note: If you enable this service then there is no need to enable the ModifyLocalDNS because all packets will be routed to 127.0.0.1 regardless of their original destination. This option installs invasive hooks.
Value: Yes|No. Default: Yes
MaxListeners
Each time a new port is accessed FakeNet will create a new socket and thread to listen to that port. This takes significant overhead and if a malicious program contains a port scanner that opens up many ports it may cause resource problems. To avoid consuming all resources FakeNet limits the number of connections. The default maximum is 200 listeners, but this can be changed in the configuration file.
Value: integer. Default: 200

OutputOptions

DumpHTTPPosts
If this option is set then FakeNet will create a file each time it receives a POST from an HTTP client and save the file in the local directory. The file is named post_ followed by the date and time of the request and an auto-incrementing integer for the currently running FakeNet instance.
Value: Yes|No. Default: No
DumpOutput
Specifies whether information shown in the console window should be output to a file
Value: Yes|No. Default: No
Fileprefix
Prefix for the output file if DumpOutput is set to Yes
Default: output

Listeners

Description

Listener lines must start with a listener type from the following options:

  • DNSListener
  • HTTPListener
  • RawListener
  • ICMPListener
  • PythonListener

Depending on which type of listener, there must also be a specific number of options in the appropriate order. This is case sensitive and will not work without all options specified in the right order in the right case.

The formats for the listeners is as follows:

Listener Format Options
DNSListener DNSListener Port:## DNSResponse:##.##.##.## NXDomains:##
  • Port: port to listen on
  • DNSResponse: IP address to send as a response (usually 127.0.0.1). If you want FakeNet to redirect DNS requests to another machine then be sure to disable the RedirectAllTraffic option which redirects all traffic to localhost regardless of DNS settings.
  • NXDomains: When this value is set to an integer N, requests for new domains will be sent a domain not found error for the first N requests. For example if NXDomain is set to 2, then each new domain name will receive two domain not found responses until FakeNet returns an IP address for the domain.
HTTPListener HTTPListener Port:## UseSSL:XXX Webroot:XXXXX
  • Port: port to listen on
  • UseSSL: use SSL connection?
  • Webroot: Optional. Directory for the web root.
RawListener RawListener Port:## UseSSL:XXX
  • Port: port to listen on
  • UseSSL: use SSL connection?
ICMPListener ICMPListener No option
PythonListener PythonListener Port:## StripSSL:XXX ScriptFile:XXXXXX
  • Port: port to listen on
  • StripSSL: strip SSL from the connection? If this option is set then FakeNet will listen for SSL traffic on the specific port and send the encrypted traffic to the Python script. Likewise any traffic sent from the Python script will be encrypted with SSL before it is sent
  • ScriptFile: filename of the python script (without the ".py" extension). The file must be stored in the extensions directory. Storing the python script in a subdirectory or other location is not supported.

DNSListener

This rule sets up a DNS listener on port 53:

DNSListener Port:53 DNSResponse:127.0.0.1 NXDomains:0

HTTPListener

This rule sets up a web server listening on port 80:

HTTPListener Port:80 UseSSL:No Webroot:None

HTTPListener

This rule is similar to the above rule except that it's expecting HTTP with SSL/TLS (HTTPS) traffic:

HTTPListener Port:443 UseSSL:Yes Webroot:None

These rules listen on additional ports that are popular used for web traffic:

HTTPListener Port:8443 UseSSL:Yes Webroot:None
HTTPListener Port:8080 UseSSL:Yes Webroot:None
HTTPListener Port:8000 UseSSL:Yes Webroot:None

RawListener

These rules listen on some formerly popular malware ports and dump the traffic to screen:

RawListener Port:1337 UseSSL:No
RawListener Port:31337 UseSSL:Yes

ICMPListener

This enables ICMP listening:

ICMPListener

PythonListener

Note
Python listeners should be present in the .\extensions\ directory

This enables the sample python script which implements a minimal SMTP server:

PythonListener Port:25 StripSSL:No ScriptFile:sampleSMTP
PythonListener Port:465 StripSSL:Yes ScriptFile:sampleSMTP

Extensions

Description

The program supports extensions using python scripts. The python scripts provide an easy to use interface for receiving and sending data received using this tool.

sampleSMTP

A sample script to implement the SMTP protocol is included in the .\extensions\ directory.

import FakeNet

#Sample python code for imitating an SMTP server
def FN_Init():
    pass

def FN_NewConnection(context):
    incomingPacket = ""
    FakeNet.sendData(context, "220 PracticalMalwareAnalysis.COM STMP Service Ready\r\n")
    while True:
        incomingPacket = FakeNet.recvData(context, 4096)
        if (incomingPacket == ""):
            break
        incomingPacket = incomingPacket[:4].upper()
        if (incomingPacket == "HELO"):
            FakeNet.sendData(context, "250 PracticalMalwareAnalysis.com\r\n")
            continue
        elif (incomingPacket == "MAIL" or incomingPacket == "RCPT" or incomingPacket == "NOOP" or incomingPacket == "RSET"):
            FakeNet.sendData(context, "250 OK\r\n")
        elif (incomingPacket == "QUIT"):
            FakeNet.sendData(context, "221 PracticalMalwareAnalysis.com bye\r\n")
            break
        elif (incomingPacket == "DATA"):
            FakeNet.sendData(context, "354 start mail input, end with <CRLF>.<CRLF>\r\n")
            dataBuffer = ""
            while True:
                incomingPacket = FakeNet.recvData(context, 4096)
                if (incomingPacket == ""):
                    break
                dataBuffer = dataBuffer + incomingPacket
                ending = dataBuffer[-5:]
                if (dataBuffer[-5:] == '\r\n.\r\n'):
                    break
            FakeNet.sendData(context, "250 OK\r\n");
        else:
            FakeNet.sendData(context, "503 Command not supported\r\n")

Custom python listeners

Required functions

Your script must have two functions defined:

FN_Init
Provides the module an opportunity to perform any necessary initialization steps.
FN_NewConnection
Takes a single parameter which is an opaque context structure. This value must be passed as the first parameter to any functions to interact with FakeNet.
Within the NewConnection function your script should call recvData and sendData (imported from FakeNet) as necessary to send and receive data:
  • sendData takes two parameters: the context of the connection and the string to send. The function returns the number of bytes successfully sent.
  • recvData also takes two parameters: the context of the connection and the size to use for the internal buffer. The interface using string types and is therefore not well suited for non-ASCII protocols which may contain embedded NULLs. The recvData function returns "" when there is an error or the connection has been closed, so be sure to check for that as a return value. If you continually call recvData without checking for "", then you will create an infinite loop.
When your FN_NewConnection function returns FakeNet will then close the connection if it is still active.

Multi threading

Special care must be taken in your python scripts to handle the multithreaded aspect of FakeNet. The threading for your python script will be handled by FakeNet, but you must be aware that your script may be called from multiple threads at the same time. You are guaranteed atomicity between calls to FakeNet, but when you call sendData or recvData other python threads will be allowed to run.

Any necessary temporary storage must be stored in a variable local to the function. Also you should not create additional threads using the Python interface and you should not use any python thread synchronization objects. Doing so could interfere with the thread synchronization being performed by FakeNet and cause deadlock. You should also refrain from calling blocking functions from within your python script (other than sendData and recvData) because if your code blocks then no other python threads will be able to run until your code either returns from FN_NewConnection or calls sendData or recvData.

Enabling extension

To enable a python extension add a new line in the configuration file as shown on the below examples:

PythonListener Port:25 StripSSL:No ScriptFile:sampleSMTP
PythonListener Port:465 StripSSL:Yes ScriptFile:sampleSMTP

Usage

Syntax

You can call fakenet.exe from command line, with an optional parameter (see the options)

C:\>fakenet [option]

Options

-r
Restores system settings from a previously crashed FakeNet instance.
This can be used to restore network settings if FakeNet for some reason doesn't restore network settings on exit. This should be rare because FakeNet has a top level exception handler that restores network settings under any normal exits or crashes.
-d
This instructs FakeNet to print debug output (required in case you file a bug report)

Usage examples

Start FakeNet

Let's start FakeNet:

C:\tools\Fakenet>FakeNet.exe
FakeNet Version 1.0
[Starting program, for help open a web browser and surf to any URL.]
[Press CTRL-C to exit.]
[Modifying local DNS Settings.]
Scanning Installed Providers
Installing Layered Providers
Preparing To Reoder Installed Chains
Reodering Installed Chains
Saving New Protocol Order
[Listening for traffic on port 80.]
[Listening for SSL traffic on port 443.]
[Listening for SSL traffic on port 8443.]
[Listening for traffic on port 8080.]
[Listening for traffic on port 8000.]
[Listening for traffic on port 1337.]
[Listening for SSL traffic on port 31337.]
[Listening for SSL traffic on port 465.]
[Listening for traffic on port 25.]
[Listening for ICMP traffic.]
[Listening for DNS traffic on port: 53.]

We see that all services have started and that KakeNet is now listening to the above ports.

HTTP traffic

Let's see how FakeNet is intercepting HTTP traffic. We'll open Internet Explorer and browse the http://www.evil.com/malicious.pdf URL.

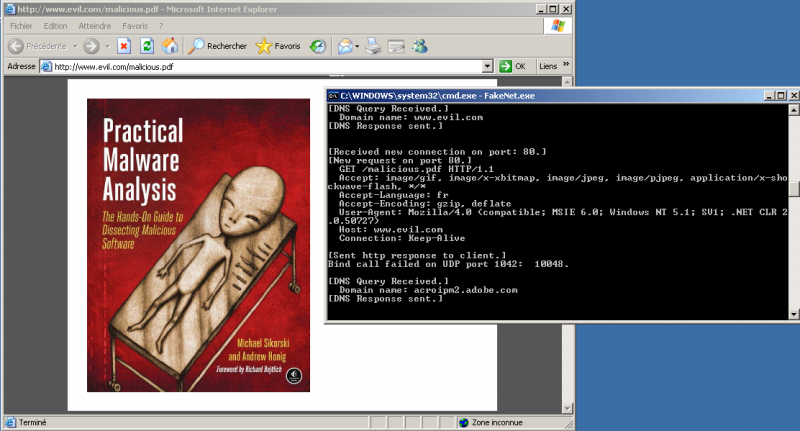

As you can see on the below screenshot, FakeNet has successfully intercepted the DNS and HTTP requests and has opened the PDF file. Notice that FakeNet has understood that we were requesting a PDF file (whatever name is requested) and has returned the one stored in .\defaultFiles\FakeNet.pdf.


Here is the output:

[DNS Query Received.]
  Domain name: www.evil.com
[DNS Response sent.]

[Received new connection on port: 80.]
[New request on port 80.]
  GET /malicious.pdf HTTP/1.1
  Accept: image/gif, image/x-xbitmap, image/jpeg, image/pjpeg, application/x-shockwave-flash, */*
  Accept-Language: fr
  Accept-Encoding: gzip, deflate
  User-Agent: Mozilla/4.0 (compatible; MSIE 6.0; Windows NT 5.1; SV1; .NET CLR 2.0.50727)
  Host: www.evil.com
  Connection: Keep-Alive

[Sent http response to client.]

Notice that the DNS request has first been intercepted ([DNS Query Received.]) and FakeNet has replied with our localhost ([DNS Response sent.]). The second part of the log shows that the HTTP request has been intercepted as well (malicious.pdf).

HTTPS traffic

FakeNet has the ability to intercept HTTPS traffic, which is very convenient to analyze malwares that crypt the HTTP traffic trough SSL. Let's simulate following request: https://www.evil.com/malicious.exe.

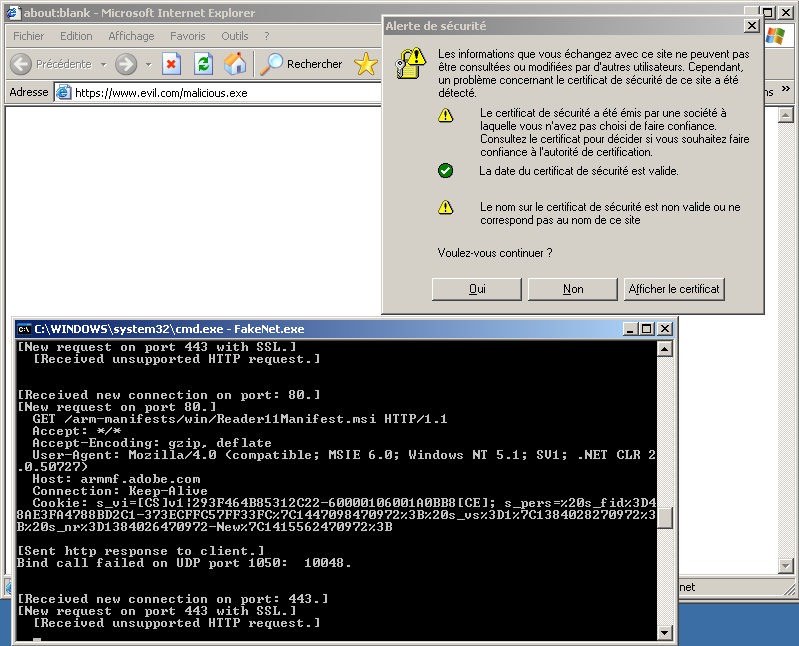

As our certificate is not approved, following popup appears. It does not really matter since we are just testing the malwares features.

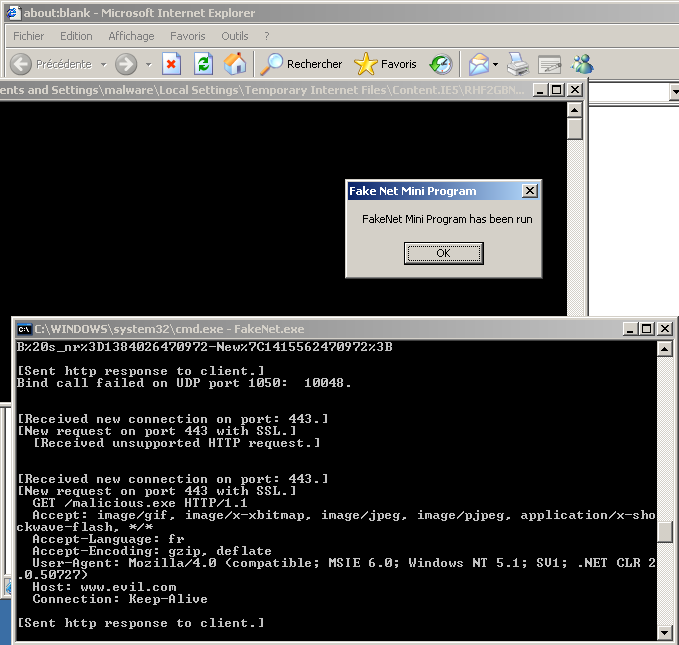

The malicious executable is downloaded. If we accept to start it, it pops up a message to indicate the executable is launched:


And here is the outut:

[Received new connection on port: 443.]
[New request on port 443 with SSL.]
  [Received unsupported HTTP request.]

[Received new connection on port: 443.]
[New request on port 443 with SSL.]
  GET /malicious.exe HTTP/1.1
  Accept: image/gif, image/x-xbitmap, image/jpeg, image/pjpeg, application/x-shockwave-flash, */*
  Accept-Language: fr
  Accept-Encoding: gzip, deflate
  User-Agent: Mozilla/4.0 (compatible; MSIE 6.0; Windows NT 5.1; SV1; .NET CLR 2.0.50727)
  Host: www.evil.com
  Connection: Keep-Alive

[Sent http response to client.]

SMTP traffic (No SSL, port 25/tcp)

Now, let's simulate a mail that would be sent by the malware. Prior to this test, I've configured Outlook Express as follows:

Key Value
User name I am the Victim
User email [email protected]
POP3 / port pop.corporate.com / 25/tcp
SMTP / port smtp.corporate.com / 110/tcp

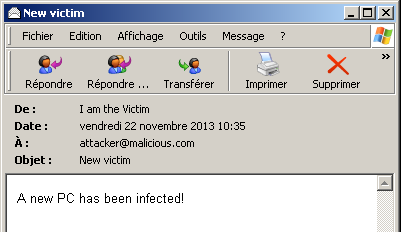

For the simulation, I've sent a mail as follows:


The output first shows a DNS query to resolve our fake smtp.corporate.com domain:

[DNS Query Received.]
  Domain name: smtp.corporate.com
[DNS Response sent.]

Followed by the connection details:

[Received new connection on port: 25.]
220 PracticalMalwareAnalysis.COM STMP Service Ready
[New Data on port 25.]
HELO malware418ee9f
250 PracticalMalwareAnalysis.com
[New Data on port 25.]
RSET
250 OK

And the email headers:

[New Data on port 25.]
MAIL FROM: <[email protected]>
250 OK
[New Data on port 25.]
RCPT TO: <[email protected]>
250 OK
[New Data on port 25.]
DATA
354 start mail input, end with <CRLF>.<CRLF>

And the content of the email:

[New Data on port 25.]
Message-ID: <[email protected]>
From: "I am the Victim" <[email protected]>
To: <[email protected]>
Subject: New victim
Date: Fri, 22 Nov 2013 10:35:33 +0100
MIME-Version: 1.0
Content-Type: multipart/alternative;
        boundary="----=_NextPart_000_0007_01CEE76E.92876A50"
X-Priority: 3
X-MSMail-Priority: Normal
X-Mailer: Microsoft Outlook Express 6.00.2900.5512
X-MimeOLE: Produced By Microsoft MimeOLE V6.00.2900.5512

This is a multi-part message in MIME format.

------=_NextPart_000_0007_01CEE76E.92876A50
Content-Type: text/plain;
        charset="iso-8859-1"
Content-Transfer-Encoding: quoted-printable

A new PC has been infected!

------=_NextPart_000_0007_01CEE76E.92876A50
Content-Type: text/html;
        charset="iso-8859-1"
Content-Transfer-Encoding: quoted-printable

<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.0 Transitional//EN">
<HTML><HEAD>
<META http-equiv=3DContent-Type content=3D"text/html; =charset=3Diso-8859-1">
<META content=3D"MSHTML 6.00.2900.5512" name=3DGENERATOR>
<STYLE></STYLE>
</HEAD>
<BODY bgColor=3D#ffffff>
<DIV>
<P><FONT face=3DArial size=3D2>A new PC has been=20infected!</FONT></P></DIV></BODY></HTML>

------=_NextPart_000_0007_01CEE76E.92876A50--
[New Data on port 25.]

.
250 OK
[New Data on port 25.]

SMTP traffic (SSL, port 465/tcp)

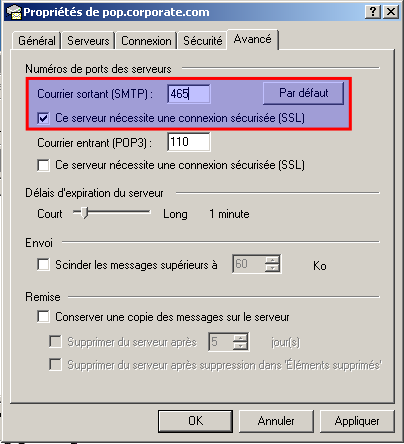

Now, let's do the same test as previously but using a SSL connection for the SMTP traffic:


Of course, it pops up a notification informing that our certificate can not be trusted. Notice that the below output appears in clear though it uses SSL. It's because FakeNet was in the middle of the communication (MITM) and was able to intercept the traffic.

[DNS Query Received.]
  Domain name: smtp.corporate.com
[DNS Response sent.]

[Received new connection on port: 465.]
220 PracticalMalwareAnalysis.COM STMP Service Ready
[New Data on port 465 with SSL.]
HELO malware418ee9f
250 PracticalMalwareAnalysis.com
[New Data on port 465 with SSL.]
MAIL FROM: <[email protected]>
250 OK
[New Data on port 465 with SSL.]
RCPT TO: <[email protected]>
250 OK
[New Data on port 465 with SSL.]
DATA
354 start mail input, end with <CRLF>.<CRLF>
[New Data on port 465 with SSL.]
Message-ID: <[email protected]>
From: "I am the Victim" <[email protected]>
To: <[email protected]>
Subject: New infected machine
Date: Fri, 22 Nov 2013 10:54:52 +0100
MIME-Version: 1.0
Content-Type: multipart/alternative;
        boundary="----=_NextPart_000_0004_01CEE771.45B825E0"
X-Priority: 3
X-MSMail-Priority: Normal
X-Mailer: Microsoft Outlook Express 6.00.2900.5512
X-MimeOLE: Produced By Microsoft MimeOLE V6.00.2900.5512

This is a multi-part message in MIME format.

------=_NextPart_000_0004_01CEE771.45B825E0
Content-Type: text/plain;
        charset="iso-8859-1"
Content-Transfer-Encoding: quoted-printable

A new machine has been infected.
------=_NextPart_000_0004_01CEE771.45B825E0
Content-Type: text/html;
        charset="iso-8859-1"
Content-Transfer-Encoding: quoted-printable

<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.0 Transitional//EN">
<HTML><HEAD>
<META http-equiv=3DContent-Type content=3D"text/html; =
charset=3Diso-8859-1">
<META content=3D"MSHTML 6.00.2900.5512" name=3DGENERATOR>
<STYLE></STYLE>
</HEAD>
<BODY bgColor=3D#ffffff>
<DIV><FONT face=3DArial size=3D2>A new machine has been=20
infected.</FONT></DIV></BODY></HTML>

------=_NextPart_000_0004_01CEE771.45B825E0--
[New Data on port 465 with SSL.]

.
250 OK
[New Data on port 465 with SSL.]

Real case scenario

In this example, we will use FakeNet against a malware identified as TrojanDownloader:Win32/Cutwail.BW (Microsoft), which MD5sum is 2422279645dc3f8f9201bf042122d6d5:

As soon as the malware is started, FakeNet displays so many information that we don't have time to read them... Below is an extract of the output:

[Received new connection on port: 80.]
[Python connection closed.]
  Domain name: tahoo.com
  User-Agent: Mozilla/4.0 (compatible; MSIE 6.0; Windows NT 5.1; SV1)
220 PracticalMalwareAnalysis.COM STMP Service Ready
[New request on port 80[New request on port 80[New request on port 80[New reques
t on port 80[DNS Response sent.]


[Received new connection on port: 80.]

[DNS Query Received.]
  Domain name: grayfoot.mailshell.com
[DNS Response sent.]

[DNS Query Received.]
  Domain name: axelero.hu
.]
  POST /?ptrxcz_pz9JTcmx6GQZju3DMWfq09JScmw6FP HTTP/1.1
  Accept: */*
  Accept-Language: en-us
  Content-Type: application/octet-stream
  Content-Length: 218
  User-Agent: Mozilla/4.0 (compatible; MSIE 6.0; Windows NT 5.1; SV1)
.]
.]
.]
[New Data on port 25  Host: stc.com.sa
[New request on port 80[DNS Response sent.]


[Received new connection on port: 80.]
.]
  POST /?ptrxcz_Vgq0AJTcmx6GPYit2CLVepy8HRaku4 HTTP/1.1
  Accept: */*
  Accept-Language: en-us
  Content-Type: application/octet-stream
  Content-Length: 143
  User-Agent: Mozilla/4.0 (compatible; MSIE 6.0; Windows NT 5.1; SV1)
  Connection: Keep-Alive
.]
  POST / HTTP/1.1
  POST /?ptrxcz_Udox7GSgucs4HVjyAOao3FOYis2BLU HTTP/1.1
  POST / HTTP/1.1
  Host: intelnet.net.gt
[New request on port 80.]
  POST /?ptrxcz_AKUdox7GQZjt3CMVfpz8IRbkv4ENXg HTTP/1.1
  Accept: */*
  Accept-Language: en-us
  Content-Type: application/octet-stream
  Content-Length: 135
  User-Agent: Mozilla/4.0 (compatible; MSIE 6.0; Windows NT 5.1; SV1)
  Host: grayfoot.mailshell.com
  Connection: Keep-Alive
  Cache-Control: no-cache

Received post with 135 bytes.
  Connection: Keep-Alive
  Cache-Control: no-cache

Received post with 218 bytes.
  Accept: */*
  Accept-Language: en-us
  Content-Type: application/octet-stream
  Content-Length: 94
  Accept: */*
  Accept: */*
ÀµÏ▒Ƚ┤ûªäÁ▲    /À)☻ÿ©9ó¹║╔►ù╝î¥A¢O╣¥¥ù←'┴ı«©┴¡\!─h
Îâ^èÏ♂┴4┌▬║Ø█┘┤→¦®§▒Ì_*+Ó7♂½ß kAÒ┬f¥õàa;µU┬Ðþ↑¢NÚ█À╦Û¬▓Hýu‼▀Ý1♫\´<♂Ý­<k¶‗é~Ú¾Ùdi
§↔└ ÷  Cache-Control: no-cache
  Host: tahoo.com


[Received new connection on port: 80.]
503 Command not supported
  Accept-Language: en-us
  Accept-Language: en-us
  User-Agent: Mozilla/4.0 (compatible; MSIE 6.0; Windows NT 5.1; SV1)

[DNS Query Received.]
  Domain name: schoolsports.com
[DNS Response sent.]


[Received new connection on port: 25.]
  Host: croeso.com
  Connection: Keep-Alive
  Cache-Control: no-cache

Received post with 94 bytes.
  Content-Type: application/octet-stream
  Content-Type: application/octet-stream
  Connection: Keep-Alive



[Received new connection on port: 80.]
220 PracticalMalwareAnalysis.COM STMP Service Ready
[New Data on port 25.]
Vï@↓³yϹÐ♫®³◄Aê²ío?■▬♠$ ïÏ┌503 Command not supported


[Received new connection on port: 80.]
Received post with 76 bytes.
  Cache-Control: no-cache

Received post with 143 bytes.
  Content-Length: 68
  Content-Length: 95
[New request on port 80[Modifying local DNS Settings.]

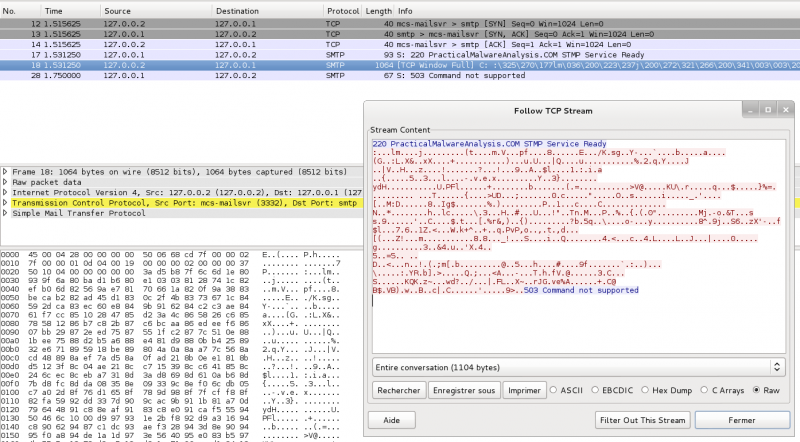

Very interesting to notice that FakeDNS has identified the DNS queries, traffic on port 80/tcp (HTTP POST requests) as well as a suspicious traffic on port 25/tcp. FakeNet has saved the pcap file that we can open with Wireshark, but this traffic does not look like a standard SMTP traffic:


With only FakeNet, we can't conclude what this traffic is. However, the tool has provided us with a lot of usefull information to start our analysis:

  • DNS queries
  • List of POST requests
  • Frequency of the requests indicating the malwares intentions
  • A suspicious traffic on port 25/tcp that we would need to anlyze in more details (i.e. by disassembling the executable)

Comments

blog comments powered by Disqus
