Inav

Description

Inav (Interactive Network Active-traffic Visualization) is a tool that shows traffic in real time on a Java-based client. It is composed of a server that gathers traffic in real time, and a client that renders the information on a map.

Installation

Server

First install dependencies:

# aptitude install build-essential libpcap-dev
$ cd /data/src/
$ wget http://inav.scaparra.com/files/server/INAV-Server-0.3.7.tar.gz
$ tar xzvf INAV-Server-0.3.7.tar.gz
$ cd INAV-Server-0.3.7/server/
$ make

Client

Download the client:

$ cd /data/src/
$ wget http://inav.scaparra.com/files/client/INAV-0.15.jar

Usage

Server

Basic start

Start the server as follows:

$ cd /data/src/INAV-Server-0.3.7/server/
$ ./inavd
INAV SERVER v0.3.7
Device(s) set to
File(s) set to
CVSFile(s) Set To

Options

-h, --help

This help menu.

-vv

Extra verbosity.

-v

Display version

-ls

List available devices

-i <interfaces>

specify interface or multiple eth0,eth1,eth2

-f <pcapfiles>

List pcap files to use as input

-c <cvsfiles>

List of cvs files to use as input

-s <usec>

Nano seconds to wait before loading in next line of a cvs file

-p <portNum>

specifty port number to listen on

--debug

starts the debug thread.

Client

Start the client as follows:

$ cd /data/src/
$ java -jar INAV-0.15.jar

Connect the client to the server

Once the client is opened, configure the connection as follows and click on "Connect":

See information from nodes

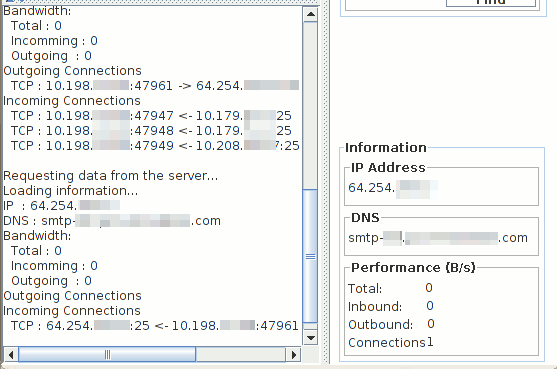

From the map, you can click on the nodes to get additional information related to the IP addresses:

Example

Read a pcap file

On the server (could be the same machine as the client), run:

$ ./inavd -f /data/development/workspace/pytbull/pcap/kraken.pcap

On the client side, run:

$ java -jar INAV-0.15.jar

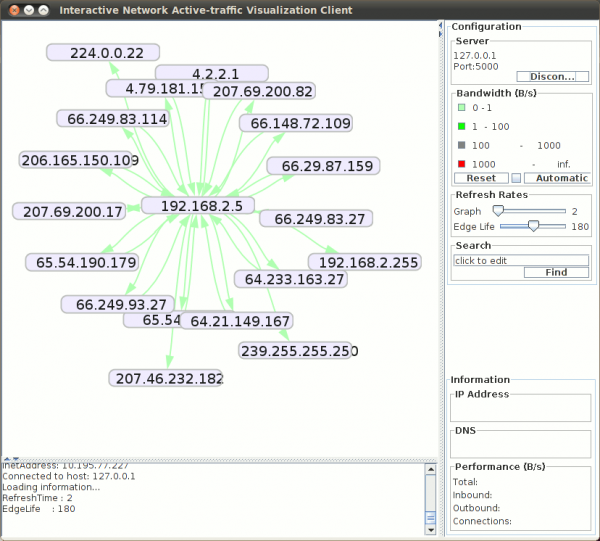

Here are the results:

Real time traffic

The following example shows a real time traffic capture using tcpdump as a filter (inavd does not come with filtering options).

• On the server:

From a first window, run (adapt the BPF filter depending on your needs):

# tcpdump -nS -i eth2 -w realtimetraffic.pcap port 25

From another window, just read the pcap file generated by the previous tcpdump command:

# inavd -f realtimetraffic.pcap

• On the client:

Just run:

$ java -jar INAV-0.15.jar

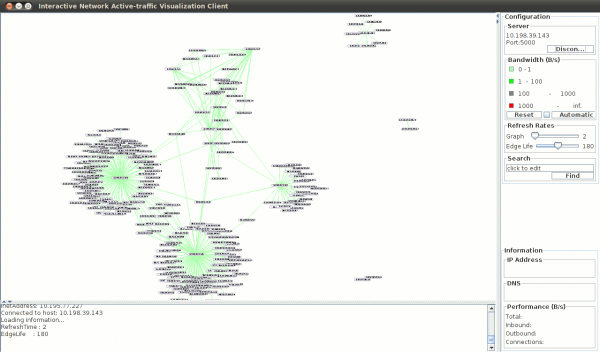

Here are the results:
