OfficeMalScanner

Description

OfficeMalScanner is a MS Office forensic tool to scan for malicious traces, like shellcode heuristics, PE-files or embedded OLE streams.

The tool will look for several strings and API calls to guess if the document is likely to be malicious:

  • FS:[30h]
  • FS:[00h]
  • API-Hashing signature
  • API-Name GetSystemDirectory string
  • API-Name CloseHandle string
  • API-Name VirtualAlloc string
  • API-Name GetProcAddr string
  • API-Name LoadLibrary string
  • Function prolog signature
  • CALL next/POP signature
  • ...

Usage

Syntax

Usage: OfficeMalScanner <PPT, DOC or XLS file> <scan | info> <brute> <debug>

Options & Switches

Options

scan
scan for several shellcode heuristics and encrypted PE-Files
info
dumps OLE structures, offsets+length and saves found VB-Macro code
inflate
decompresses Ms Office 2007 documents, e.g. docx, into a temp dir

Switches

Following switches are intended to be used in combination with the scan option:

brute
enables the "brute force mode" to find encrypted stuff
debug
prints out disassembly resp hexoutput if a heuristic was found

Examples

info option (tested with a legacy XLS binary)

C:\tools\OfficeMalScanner>OfficeMalScanner.exe "C:\Documents and Settings\malware\Bureau\vbmacros\vbmacro.xls" info

+------------------------------------------+
|           OfficeMalScanner v0.58         |
|  Frank Boldewin / www.reconstructer.org  |
+------------------------------------------+

[*] INFO mode selected
[*] Opening file C:\Documents and Settings\malware\Bureau\vbmacros\vbmacro.xls
[*] Filesize is 33280 (0x8200) Bytes
[*] Ms Office OLE2 Compound Format document detected
[*] Format type Excel

--------------------------------------
[Scanning for VB-code in VBMACRO.XLS]
--------------------------------------
Sheet1
Sheet2
Sheet3
ThisWorkbook
-----------------------------------------------------------------------------
                VB-MACRO CODE WAS FOUND INSIDE THIS FILE!
               The decompressed Macro code was stored here:

------> C:\tools\OfficeMalScanner\VBMACRO.XLS-Macros
-----------------------------------------------------------------------------

Notice that OfficeMalScanner has extracted the macros (saved in C:\tools\OfficeMalScanner\VBMACRO.XLS-Macros) contained in the Excel sheeets. Let's have a look at the last one contained in the ThisWorkBook sheet:

Attribute VB_Name = "ThisWorkbook"
Attribute VB_Base = "0{00020819-0000-0000-C000-000000000046}"
Attribute VB_GlobalNameSpace = False
Attribute VB_Creatable = False
Attribute VB_PredeclaredId = True
Attribute VB_Exposed = True
Attribute VB_TemplateDerived = False
Attribute VB_Customizable = True
Sub Run_Cmd(command, visibility, wait_on_execute)
Dim WshShell As Variant
Set WshShell = CreateObject("WScript.Shell")
WshShell.Run "%COMSPEC% /c " & command, visibility, wait_on_execute
End Sub
Sub Run_Program(program, arguments, visibility, wait_on_execute)
Dim WshShell As Variant
Set WshShell = CreateObject("WScript.Shell")
WshShell.Run program & " " & arguments & " ", visibility, wait_on_execute
End Sub

Sub Workbook_Open()
Const VISIBLE = 1, INVISIBLE = 0
Const WAIT = True, NOWAIT = False
Run_Cmd "ping 127.0.0.1", VISIBLE, WAIT
Run_Program "notepad.exe", "", VISIBLE, NOWAIT
End Sub

info option (tested with a XML spreadsheet)

Let's analyze a *.xlsm file:

C:\tools\OfficeMalScanner>OfficeMalScanner.exe "C:\Documents and Settings\malware\Bureau\vbmacros\vbmacro.xlsm" info

+------------------------------------------+
|           OfficeMalScanner v0.58         |
|  Frank Boldewin / www.reconstructer.org  |
+------------------------------------------+

[*] INFO mode selected
[*] Opening file C:\Documents and Settings\malware\Bureau\vbmacros\vbmacro.xlsm
[*] Filesize is 13877 (0x3635) Bytes

Sorry, this file is not a Ms Office OLE2 Compound File (PPT/DOC/XLS)
but an Ms Office Open XML Format document (MSOffice 2007 and higher) was detected.
Try using the "inflate" mode to scan for .bin files

As you can notice from the above output, we must first uncompress the file, either by renaming the *.xlsm into a *.zip archive and by uncompressing it, or by using the inflate option.

With the manual approach, here is the *.bin file we're interested in:


And by using the inflate option:

C:\tools\OfficeMalScanner>OfficeMalScanner.exe "C:\Documents and Settings\malware\Bureau\vbmacros\vbmacro.xlsm" inflate

+------------------------------------------+
|           OfficeMalScanner v0.58         |
|  Frank Boldewin / www.reconstructer.org  |
+------------------------------------------+

[*] INFLATE mode selected
[*] Opening file C:\Documents and Settings\malware\Bureau\vbmacros\vbmacro.xlsm
[*] Filesize is 13877 (0x3635) Bytes
[*] Microsoft Office Open XML Format document detected.

Found 12 files in this archive

[Content_Types].xml ----- 1359 Bytes ----- at Offset 0x00000000
_rels/.rels ----- 588 Bytes ----- at Offset 0x0000038f
xl/_rels/workbook.xml.rels ----- 961 Bytes ----- at Offset 0x0000067b
xl/workbook.xml ----- 700 Bytes ----- at Offset 0x000008d3
xl/theme/theme1.xml ----- 6995 Bytes ----- at Offset 0x00000a91
xl/worksheets/sheet2.xml ----- 467 Bytes ----- at Offset 0x00001144
xl/worksheets/sheet3.xml ----- 467 Bytes ----- at Offset 0x0000129e
xl/vbaProject.bin ----- 17920 Bytes ----- at Offset 0x000013f8
xl/styles.xml ----- 868 Bytes ----- at Offset 0x00002a91
xl/worksheets/sheet1.xml ----- 535 Bytes ----- at Offset 0x00002c5f
docProps/core.xml ----- 581 Bytes ----- at Offset 0x00002ddc
docProps/app.xml ----- 820 Bytes ----- at Offset 0x00003055


-----------------------------------------------------------------------------
      Content was decompressed to C:\DOCUME~1\malware\LOCALS~1\Temp\Decompressed
MsOfficeDocument.

      Found at least 1 ".bin" file in the MSOffice document container.
           Try to scan it manually with SCAN+BRUTE and INFO mode.
-----------------------------------------------------------------------------

As you can notice, a *.bin file has been uncompressed:

C:\Documents and Settings\malware\Local Settings\Temp\DecompressedMsOfficeDocume
nt\xl>dir
 Le volume dans le lecteur C n'a pas de nom.
 Le numéro de série du volume est 7828-747F

 Répertoire de C:\Documents and Settings\malware\Local Settings\Temp\Decompresse
dMsOfficeDocument\xl

23/12/2013  21:29    <REP>          .
23/12/2013  21:29    <REP>          ..
01/01/1980  00:00               868 styles.xml
23/12/2013  21:29    <REP>          theme
01/01/1980  00:00            17 920 vbaProject.bin
01/01/1980  00:00               700 workbook.xml
23/12/2013  21:29    <REP>          worksheets
23/12/2013  21:29    <REP>          _rels
               3 fichier(s)           19 488 octets
               5 Rép(s)   8 206 295 040 octets libres

Now, we should be able to analyze it:

C:\tools\OfficeMalScanner>OfficeMalScanner.exe "c:\Documents and Settings\malware\Local Settings\Temp\DecompressedMsOfficeDocument\xl\vbaProject.bin" info

+------------------------------------------+
|           OfficeMalScanner v0.58         |
|  Frank Boldewin / www.reconstructer.org  |
+------------------------------------------+

[*] INFO mode selected
[*] Opening file c:\Documents and Settings\malware\Local Settings\Temp\Decompres
sedMsOfficeDocument\xl\vbaProject.bin
[*] Filesize is 17920 (0x4600) Bytes
[*] Ms Office OLE2 Compound Format document detected

-----------------------------------------
[Scanning for VB-code in VBAPROJECT.BIN]
-----------------------------------------
Sheet1
Sheet2
Sheet3
ThisWorkbook
-----------------------------------------------------------------------------
                VB-MACRO CODE WAS FOUND INSIDE THIS FILE!
               The decompressed Macro code was stored here:

------> C:\tools\OfficeMalScanner\VBAPROJECT.BIN-Macros
-----------------------------------------------------------------------------

scan option

Let's use the scan option against an Excel document that we suspect being malicious:

C:\tools\OfficeMalScanner>OfficeMalScanner.exe "\Documents and Settings\malware\Bureau\olimpikge\Olimpikge.xls" scan debug

+------------------------------------------+
|           OfficeMalScanner v0.58         |
|  Frank Boldewin / www.reconstructer.org  |
+------------------------------------------+

[*] SCAN mode selected
[*] Opening file \Documents and Settings\malware\Bureau\olimpikge\Olimpikge.xls
[*] Filesize is 158910 (0x26cbe) Bytes
[*] Ms Office OLE2 Compound Format document detected
[*] Format type Excel
[*] Scanning now...

FS:[30h] (Method 1) signature found at offset: 0x13406

64A130000000                       mov eax, fs:[30h]
8B400C                             mov eax, [eax+0Ch]
8B701C                             mov esi, [eax+1Ch]
AD                                 lodsd
8B6808                             mov ebp, [eax+08h]
8BF7                               mov esi, edi
6A11                               push 00000011h
59                                 pop ecx
E8D0020000                         call $+000002D5h
E2F9                               loop $-05h
6A69                               push 00000069h
6870736170                         push 70617370h
54                                 push esp
FF16                               call [esi]
8BE8                               mov ebp, eax
6A01                               push 00000001h
--------------------------------------------------------------------------

API-Hashing signature found at offset: 0x1370f

7408                               jz $+0Ah
C1CB07                             ror ebx, 07h
03DA                               add ebx, edx
40                                 inc eax
EBF1                               jmp $-0Dh
3B1F                               cmp ebx, [edi]
75E7                               jnz $-17h
5E                                 pop esi
8B5E24                             mov ebx, [esi+24h]
03DD                               add ebx, ebp
668B0C4B                           mov cx, [ebx+ecx*2]
8B5E1C                             mov ebx, [esi+1Ch]
03DD                               add ebx, ebp
8B048B                             mov eax, [ebx+ecx*4]
03C5                               add eax, ebp
AB                                 stosd
--------------------------------------------------------------------------

JMP [0xEB]/CALL/POP signature found at offset: 0xe41

EB10                               jmp $+12h
5B                                 pop ebx
4B                                 dec ebx
33C9                               xor ecx, ecx
66B99C01                           mov cx, 019Ch
80340BFD                           xor byte ptr [ebx+ecx], FFFFFFFDh
E2FA                               loop $-04h
EB05                               jmp $+07h
E8EBFFFFFF                         call $-00000010h
1487                               adc al, 87h
FC                                 cld
FD                                 std
FD                                 std
A2995CCDFD                         mov [FDCD5C99h], al
FD                                 std
FD                                 std
--------------------------------------------------------------------------

JMP [0xE9]/CALL/POP signature found at offset: 0x13400

E930030000                         jmp $+00000335h
5F                                 pop edi
64A130000000                       mov eax, fs:[30h]
8B400C                             mov eax, [eax+0Ch]
8B701C                             mov esi, [eax+1Ch]
AD                                 lodsd
8B6808                             mov ebp, [eax+08h]
8BF7                               mov esi, edi
6A11                               push 00000011h
59                                 pop ecx
E8D0020000                         call $+000002D5h
E2F9                               loop $-05h
6A69                               push 00000069h
6870736170                         push 70617370h
54                                 push esp
FF16                               call [esi]
--------------------------------------------------------------------------

Embedded OLE signature found at offset: 0x22ebe

Dumping Memory to disk as filename: Olimpikge__EMBEDDED_OLE__OFFSET=0x22ebe.bin


[ OLE File (after decryption) - 256 bytes ]
d0 cf 11 e0 a1 b1 1a e1  00 00 00 00 00 00 00 00  | ................
00 00 00 00 00 00 00 00  3e 00 03 00 fe ff 09 00  | ........>.......
06 00 00 00 00 00 00 00  00 00 00 00 01 00 00 00  | ................
1d 00 00 00 00 00 00 00  00 10 00 00 fe ff ff ff  | ................
00 00 00 00 fe ff ff ff  00 00 00 00 1c 00 00 00  | ................
ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  | ................
ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  | ................
ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  | ................
ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  | ................
ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  | ................
ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  | ................
ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  | ................
ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  | ................
ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  | ................
ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  | ................
ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  | ................

--------------------------------------------------------------------------




Analysis finished!

----------------------------------------------------------
Olimpikge.xls seems to be malicious! Malicious Index = 41
----------------------------------------------------------

OfficeMalScanner has extracted a file with the scan option. However, it doesn't look like a valid PE file. We can try to use the scan brute option (see next section).

scan brute option

The malicious file embedded in our Office document is probably encrypted. Let's use the scan brute option to brute-force 0x00-0xFF key values for bitwise XOR and AND:

C:\tools\OfficeMalScanner>OfficeMalScanner.exe "\Documents and Settings\malware\Bureau\olimpikge\Olimpikge.xls" scan brute debug

+------------------------------------------+
|           OfficeMalScanner v0.58         |
|  Frank Boldewin / www.reconstructer.org  |
+------------------------------------------+

[*] SCAN mode selected
[*] Opening file \Documents and Settings\malware\Bureau\olimpikge\Olimpikge.xls
[*] Filesize is 158910 (0x26cbe) Bytes
[*] Ms Office OLE2 Compound Format document detected
[*] Format type Excel
[*] Scanning now...

FS:[30h] (Method 1) signature found at offset: 0x13406

64A130000000                       mov eax, fs:[30h]
8B400C                             mov eax, [eax+0Ch]
8B701C                             mov esi, [eax+1Ch]
AD                                 lodsd
8B6808                             mov ebp, [eax+08h]
8BF7                               mov esi, edi
6A11                               push 00000011h
59                                 pop ecx
E8D0020000                         call $+000002D5h
E2F9                               loop $-05h
6A69                               push 00000069h
6870736170                         push 70617370h
54                                 push esp
FF16                               call [esi]
8BE8                               mov ebp, eax
6A01                               push 00000001h
--------------------------------------------------------------------------

API-Hashing signature found at offset: 0x1370f

7408                               jz $+0Ah
C1CB07                             ror ebx, 07h
03DA                               add ebx, edx
40                                 inc eax
EBF1                               jmp $-0Dh
3B1F                               cmp ebx, [edi]
75E7                               jnz $-17h
5E                                 pop esi
8B5E24                             mov ebx, [esi+24h]
03DD                               add ebx, ebp
668B0C4B                           mov cx, [ebx+ecx*2]
8B5E1C                             mov ebx, [esi+1Ch]
03DD                               add ebx, ebp
8B048B                             mov eax, [ebx+ecx*4]
03C5                               add eax, ebp
AB                                 stosd
--------------------------------------------------------------------------

JMP [0xEB]/CALL/POP signature found at offset: 0xe41

EB10                               jmp $+12h
5B                                 pop ebx
4B                                 dec ebx
33C9                               xor ecx, ecx
66B99C01                           mov cx, 019Ch
80340BFD                           xor byte ptr [ebx+ecx], FFFFFFFDh
E2FA                               loop $-04h
EB05                               jmp $+07h
E8EBFFFFFF                         call $-00000010h
1487                               adc al, 87h
FC                                 cld
FD                                 std
FD                                 std
A2995CCDFD                         mov [FDCD5C99h], al
FD                                 std
FD                                 std
--------------------------------------------------------------------------

JMP [0xE9]/CALL/POP signature found at offset: 0x13400

E930030000                         jmp $+00000335h
5F                                 pop edi
64A130000000                       mov eax, fs:[30h]
8B400C                             mov eax, [eax+0Ch]
8B701C                             mov esi, [eax+1Ch]
AD                                 lodsd
8B6808                             mov ebp, [eax+08h]
8BF7                               mov esi, edi
6A11                               push 00000011h
59                                 pop ecx
E8D0020000                         call $+000002D5h
E2F9                               loop $-05h
6A69                               push 00000069h
6870736170                         push 70617370h
54                                 push esp
FF16                               call [esi]
--------------------------------------------------------------------------

Embedded OLE signature found at offset: 0x22ebe

Dumping Memory to disk as filename: Olimpikge__EMBEDDED_OLE__OFFSET=0x22ebe.bin


[ OLE File (after decryption) - 256 bytes ]
d0 cf 11 e0 a1 b1 1a e1  00 00 00 00 00 00 00 00  | ................
00 00 00 00 00 00 00 00  3e 00 03 00 fe ff 09 00  | ........>.......
06 00 00 00 00 00 00 00  00 00 00 00 01 00 00 00  | ................
1d 00 00 00 00 00 00 00  00 10 00 00 fe ff ff ff  | ................
00 00 00 00 fe ff ff ff  00 00 00 00 1c 00 00 00  | ................
ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  | ................
ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  | ................
ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  | ................
ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  | ................
ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  | ................
ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  | ................
ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  | ................
ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  | ................
ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  | ................
ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  | ................
ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  | ................

--------------------------------------------------------------------------


Brute-forcing for encrypted PE- and embedded OLE-files now...
Bruting XOR Key: 0xff
Bruting ADD Key: 0x01

PEMagic was not 0x010b, but other PE-file indications were found. So dumping any
way...
ADD encrypted MZ/PE signature found at offset: 0x13796 - encryption KEY: 0x01

Dumping Memory to disk as filename: Olimpikge__PEFILE__OFFSET=0x13796__ADD-KEY=0
x01.bin


[ PE-File (after decryption) - 256 bytes ]
4d 5a 90 00 03 00 00 00  04 00 00 00 ff ff 00 00  | MZ..............
b8 00 00 00 00 00 00 00  40 00 00 00 00 00 00 00  | [email protected]
00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  | ................
00 00 00 00 00 00 00 00  00 00 00 00 e0 00 00 00  | ................
0e 1f ba 0e 00 b4 09 cd  21 b8 00 4c cd 21 54 68  | ........!..L.!Th
69 73 20 70 72 6f 67 72  61 6d 20 63 61 6e 6e 6f  | is program canno
74 20 62 65 20 72 75 6e  20 69 6e 20 44 4f 53 20  | t be run in DOS
6d 6f 64 65 2e 0d 0d 0a  24 00 00 00 00 00 00 00  | mode....$.......
df 64 5f 91 9b 05 31 c2  9b 05 31 c2 9b 05 31 c2  | .d_...1...1...1.
18 19 3f c2 99 05 31 c2  f4 1a 3b c2 90 05 31 c2  | ..?...1...;...1.
f4 1a 35 c2 99 05 31 c2  9b 05 30 c2 a6 05 31 c2  | ..5...1...0...1.
18 0d 6c c2 90 05 31 c2  ad 23 3a c2 98 05 31 c2  | ..l...1..#:...1.
52 69 63 68 9b 05 31 c2  00 00 00 00 00 00 00 00  | Rich..1.........
00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  | ................
50 45 00 00 4c 00 03 00  5b 3f 2d 48 00 00 00 00  | PE..L...[?-H....
00 00 00 00 e0 00 0f 00  0b 00 06 00 00 20 00 00  | ............. ..

--------------------------------------------------------------------------

Bruting ADD Key: 0xff
Bruting ROL Key: 0x08
ROL encrypted embedded OLE signature found at offset: 0x22ebe - encryption KEY:
0x08

Dumping Memory to disk as filename: Olimpikge__EMBEDDED_OLE__OFFSET=0x22ebe__ROL
-KEY=0x08.bin


[ OLE File (after decryption) - 256 bytes ]
d0 cf 11 e0 a1 b1 1a e1  00 00 00 00 00 00 00 00  | ................
00 00 00 00 00 00 00 00  3e 00 03 00 fe ff 09 00  | ........>.......
06 00 00 00 00 00 00 00  00 00 00 00 01 00 00 00  | ................
1d 00 00 00 00 00 00 00  00 10 00 00 fe ff ff ff  | ................
00 00 00 00 fe ff ff ff  00 00 00 00 1c 00 00 00  | ................
ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  | ................
ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  | ................
ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  | ................
ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  | ................
ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  | ................
ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  | ................
ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  | ................
ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  | ................
ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  | ................
ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  | ................
ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  | ................

--------------------------------------------------------------------------




Analysis finished!

----------------------------------------------------------
Olimpikge.xls seems to be malicious! Malicious Index = 62
----------------------------------------------------------

This time, we are done! The file was encrypted with ADD using the key 0x01. CFF Explorer detects a PE file:

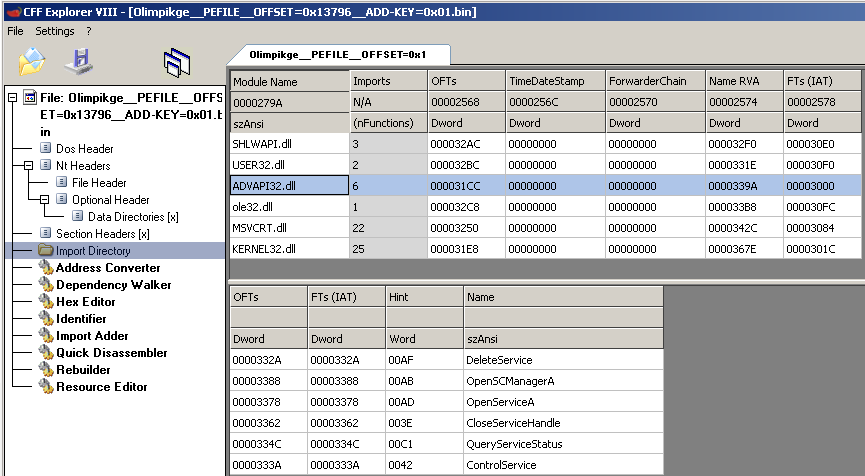

As well as an import table:


Though the file does not seem to be valid (IDA Pro is unable to load the file), you should still be able to perform a static analysis.

Comments

blog comments powered by Disqus
