The Component Object Model (COM) is a Microsoft interface standard that enables different applications to call each other without knowledge of specifics. It's implemented as a client/server framework where the client is the application that uses COM objects and the server is the reusable software component.

An application that makes use of COM must call one of these 2 functions:


COM objects are accessible via their Globally Unique Identifiers (GUID) also called Class Identifiers (CLSID) and their Interface Identifiers (IID). The CoCreateInstance function is used for that purpose.

CLSIDs are listed by the Registry database in 2 keys:

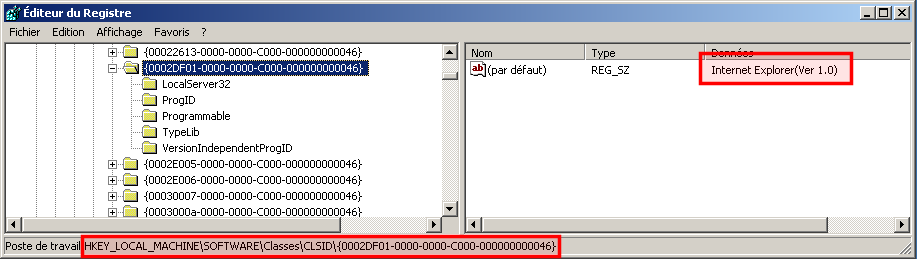

Here is the CLSID for Internet Explorer (0002DF01-0000-0000-C000-000000000046):

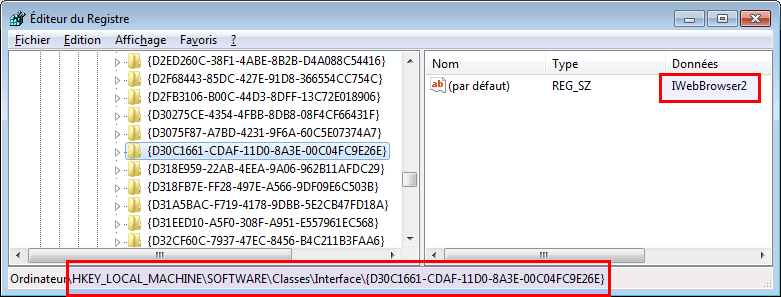

Here is the RIID for IWebBrowser2 interface (D30C1661-CDAF-11D0-8A3E-00C04FC9E26E):



.text:00401003                 push    0               ; pvReserved
.text:00401005                 call    ds:OleInitialize
.text:0040100B                 test    eax, eax
.text:0040100D                 jl      short loc_401085
.text:0040100F                 lea     eax, [esp+24h+ppv]
.text:00401013                 push    eax             ; ppv
.text:00401014                 push    offset riid     ; riid
.text:00401019                 push    4               ; dwClsContext
.text:0040101B                 push    0               ; pUnkOuter
.text:0040101D                 push    offset rclsid   ; rclsid
.text:00401022                 call    ds:CoCreateInstance
.text:00401028                 mov     eax, [esp+24h+ppv]
.text:0040102C                 test    eax, eax
.text:0040102E                 jz      short loc_40107F
.text:00401030                 lea     ecx, [esp+24h+pvarg]
.text:00401034                 push    esi
.text:00401035                 push    ecx             ; pvarg
.text:00401036                 call    ds:VariantInit
.text:0040103C                 push    offset psz      ; ""
.text:00401041                 mov     [esp+2Ch+var_10], 3
.text:00401048                 mov     [esp+2Ch+var_8], 1
.text:00401050                 call    ds:SysAllocString
.text:00401056                 lea     ecx, [esp+28h+pvarg]
.text:0040105A                 mov     esi, eax
.text:0040105C                 mov     eax, [esp+28h+ppv]
.text:00401060                 push    ecx
.text:00401061                 lea     ecx, [esp+2Ch+pvarg]
.text:00401065                 mov     edx, [eax]
.text:00401067                 push    ecx
.text:00401068                 lea     ecx, [esp+30h+pvarg]
.text:0040106C                 push    ecx
.text:0040106D                 lea     ecx, [esp+34h+var_10]
.text:00401071                 push    ecx
.text:00401072                 push    esi
.text:00401073                 push    eax
.text:00401074                 call    dword ptr [edx+2Ch]
.text:00401077                 push    esi             ; bstrString
.text:00401078                 call    ds:SysFreeString
.text:0040107E                 pop     esi
.text:0040107F loc_40107F:
.text:0040107F                 call    ds:OleUninitialize

The malware initializes COM at address 0x00401005 with OleInitialize and obtains a pointer to the COM object at address 0x00401022 with CoCreateInstance. To identify the COM object, we need to click on riid and rclsid:

.rdata:00402058 ; IID rclsid
.rdata:00402058 rclsid          dd 2DF01h               ; Data1
.rdata:00402058                 dw 0                    ; Data2
.rdata:00402058                 dw 0                    ; Data3
.rdata:00402058                 db 0C0h, 6 dup(0), 46h  ; Data4
.rdata:00402068 ; IID riid
.rdata:00402068 riid            dd 0D30C1661h           ; Data1
.rdata:00402068                 dw 0CDAFh               ; Data2
.rdata:00402068                 dw 11D0h                ; Data3
.rdata:00402068                 db 8Ah, 3Eh, 0, 0C0h, 4Fh, 0C9h, 0E2h, 6Eh; Data4

Hereis what we obtain:

  • rclsid: 0002DF01-0000-0000-C000-000000000046, which corresponds to Internet Explorer
  • riid: D30C1661-CDAF-11D0-8A3E-00C04FC9E26E, which corresponds to IWebBrowser2

The COM functionnality is accessed from address 0x0040105C.

Following this instruction, EAX points to the location of the COM object.

At address 0x00401065, EAX is dereferenced and EDX points to the beginning of the COM object itself.

At address 0x00401074, the function at an offset of +0x2C from the object is called. It corresponds to the Navigate function of the IWebBrowser2 interface. When this function is called, the URL will be browsed with Internet Explorer.
