You are here

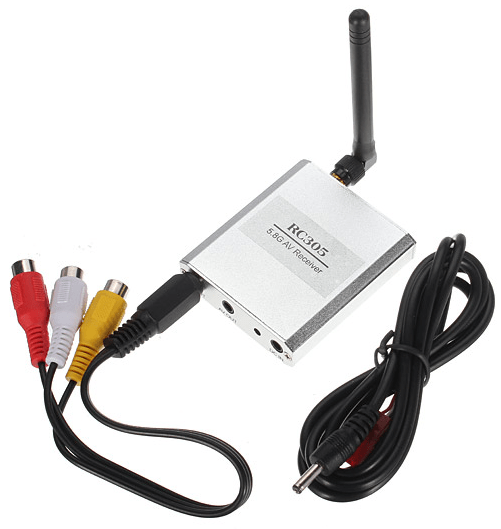

Boscam RC305

Description

Supported frequencies and dip switches

The Boscam RC305 video receiver is working on band E. Frequencies can be setup with dip switches, as follows:

Note
White squares represent the switches.
Channel Freq
(in MHZ) 		Dip switch
CH1 5705
■ ■ ■ ■
■ ■ ■ ■
1 2 3 4
CH2 5685
■ ■ ■ ■
■ ■ ■ ■
1 2 3 4
CH3 5665
■ ■ ■ ■
■ ■ ■ ■
1 2 3 4
CH4 5645
■ ■ ■ ■
■ ■ ■ ■
1 2 3 4
CH5 5885
■ ■ ■ ■
■ ■ ■ ■
1 2 3 4
CH6 5905
■ ■ ■ ■
■ ■ ■ ■
1 2 3 4
CH7 5925
■ ■ ■ ■
■ ■ ■ ■
1 2 3 4
CH8 5945
■ ■ ■ ■
■ ■ ■ ■
1 2 3 4

Comments
