Firmware upgrade

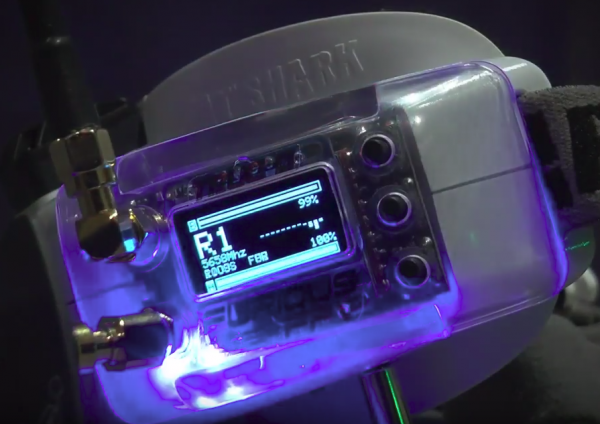

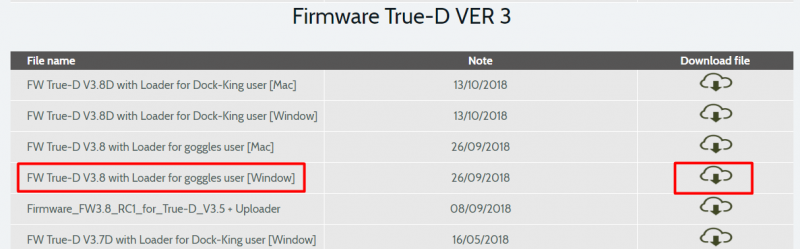

• Go to the download page and get the latest firmware for your receiver.

• Unzip the archive
• Execute avrdude.exe from the XLoader directory
• To install the drivers, execute pololu-cp2102-setup-x64.exe (for 64bit architecture) from the pololu-cp2102-windows directory
• Restart the computer
• Plug the True-D module to the computer via the USB cable
• Execute XLoader.exe from the XLoader directory.
• From the user interface, search the *.hex file (e.g. TrueD-3.8.hex), change the COM port and click on the Upload button

• After the upgrade, always recalibrate the module
