Lumenier TX5GPro mini 600 mW

Description

Features
  • 32 channels: Covers 4 Bands
  • Intuitive and easy to use button and LEDs for frequency selection
  • Provides 5v power output for FPV cameras (New upgraded voltage regulator)
  • Small sized and light weight
  • Transmitter frequency: 5658-5925MHz with 600mW power output
  • Transmitting distance > 2000m (open area)
  • SMA Antenna connector
  • Dimensions: 32*22*9mm (not including SMA adapter)
  • Audio: Includes on board microphone
Specifications
  • Operating Voltage: 7 - 28V
  • Supply current: 260 mA
  • Operating Temperature: -10 +85 C
  • Video Band Width: 5-6 MHz
  • Audio carrier Frequency: 6.5 MHz
  • Video Input Level: 0.8,1.0,1.2 Vp-p
  • Video Input Impedance: 75 Ohm
  • Audio Input Level: 0.8 ,2.0 Vp-p
  • Audio Input Impedance: 10K Ohm
  • Weight: 7.5g (without antenna)
  • Antenna Connector:SMA Female Connector
  • Video Format: NTSC/PAL

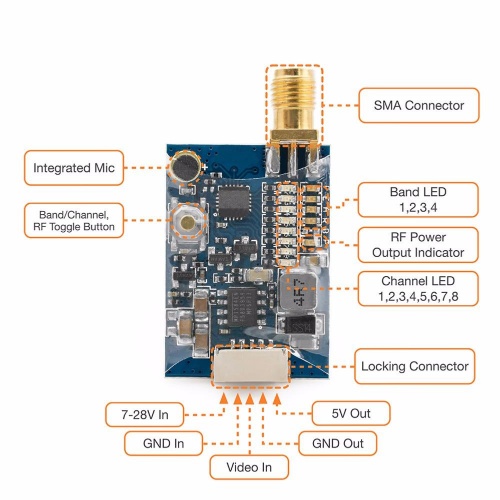

Lumenier-tx5gpro-mini-600mw-1.jpg Lumenier-tx5gpro-mini-600mw-2.jpg


Supported frequencies

The frequency selection is done with a button.

  • Press and hold button for 2 seconds to toggle RF power output.
  • Press button once to change Channel.
  • Double press button to change Band.

Supported frequencies:

Band \ Channels CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
F (FS/IRC) 5740 5760 5780 5800 5820 5840 5860 5880
E (Boscam E / DJI) 5705 5685 5665 5752 5885 5905 5925 5866
A (Boscam A / TBS) 5865 5845 5825 5805 5785 5765 5745 5725
Raceband 5658 5695 5732 5769 5806 5843 5880 5917

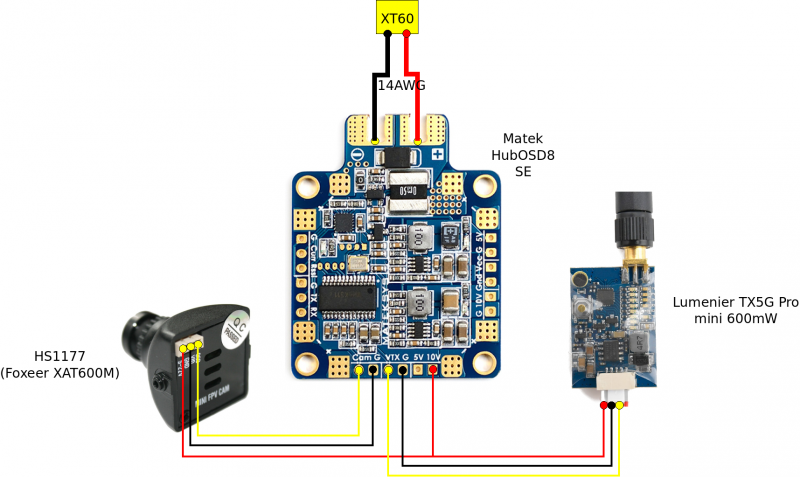

Connection
