AES

Description

The Advanced Encryption Standard (AES), also referenced as Rijndael (its original name), is a specification for the encryption of electronic data established by the U.S. National Institute of Standards and Technology (NIST) in 2001.

Recognizing AES in assembly

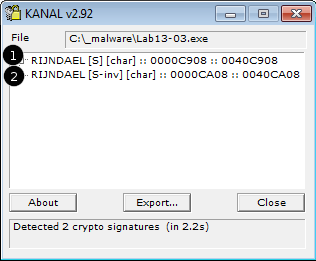

PEiD KANAL plugin provides us with the following information:

  1. AES Encryption function
  2. AES Decryption function

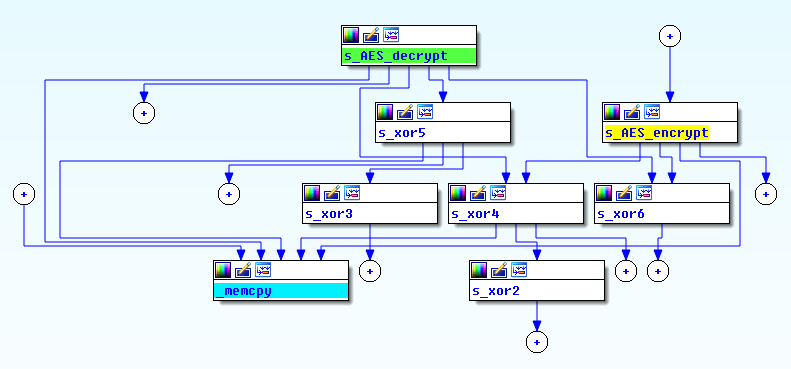

In IDA-Pro, search for calls to XOR instructions in the code and group them into functions. Analyze the addresses of the parent calling functions and identify the encrypt/decrypt functions based on the addresses identified with PEiD.


Decrypt AES

from Crypto.Cipher import AES
from Crypto import Random
import binascii

raw = "37 f3 1f 04 51 20 e0 b5 86 ac b6 0f 65 20 89 92" + \
" 6c 80 28 d5 42 30 28 20 65 06 cd f7 57 b9 88 54" + \
" 38 cb 28 f0 f5 45 68 ae 59 00 c7 a1 8c 37 d0 68" + \
" 06 68 2e 44 a2 f7 d8 c4 25 10 05 b4 47 38 c0 3a" + \
" 31 af 22 8a 53 27 8c 61 c5 1d 13 b0 dc 4a bd 91" + \
" db 65 4b 16 05 77 ee 9e 24 5c a3 fa 06 88 4e cf" + \
" 64 f3 58 35 f5 66 b9 e0 78 59 d9 c7 7b a5 fb 25" + \
" f4 28 88 3b ac 66 e4 0e c5 a6 36 ae 63 f8 74 8d"

ciphertext = binascii.unhexlify(raw.replace(' ', ''))
iv = Random.new().read(AES.block_size)
obj = AES.new('ijklmnopqrstuvwx', AES.MODE_CBC, iv)
print obj.decrypt(ciphertext)
