Description

INCOMPLETE SECTION OR ARTICLE
This section/article is being written and is therefore not complete.
Thank you for your comprehension.

Finding the OEP (Original Entry Point)

pescanner.py

$ ./pescanner.py Lab14-02.exe
################################################################################
Record 0
################################################################################

Meta-data
================================================================================
File:    /data/documents/malware-analysis/BinaryCollection/Chapter_14L/Lab14-02.exe
Size:    6656 bytes
Type:    PE32 executable (GUI) Intel 80386, for MS Windows
MD5:     14d4bdcc5f0fe917abde4b01e39a350e
SHA1:    a2a7352960517502487fb46253a057f51872625e
ssdeep:
Date:    0x496558BC [Thu Jan  8 01:37:00 2009 UTC]
EP:      0x4019fe .text 0/4
CRC:     Claimed: 0x0, Actual: 0x1e86 [SUSPICIOUS]
Packers: Microsoft Visual C++ v6.0

Resource entries
================================================================================
Name               RVA      Size     Lang         Sublang                  Type
--------------------------------------------------------------------------------
RT_STRING          0x4058   0x5a     LANG_ENGLISH SUBLANG_ENGLISH_US       data

Suspicious IAT alerts
================================================================================
CreateProcessA
ShellExecuteExA
InternetOpenUrlA
InternetOpenA

Sections
================================================================================
Name       VirtAddr     VirtSize     RawSize      Entropy
--------------------------------------------------------------------------------
.text      0x1000       0xb8c        0xc00        6.052097
.rdata     0x2000       0x5f6        0x600        4.987689
.data      0x3000       0xc4         0x200        2.118812
.rsrc      0x4000       0xb8         0x200        0.912837    [SUSPICIOUS]

IDA Pro

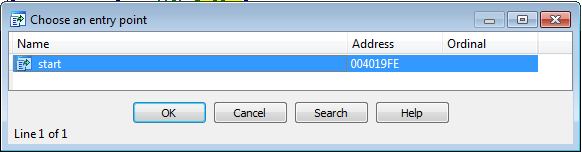

In IDA-Pro, go to Jump > Jump to entry point or press Ctrl + E to reach the entry point:

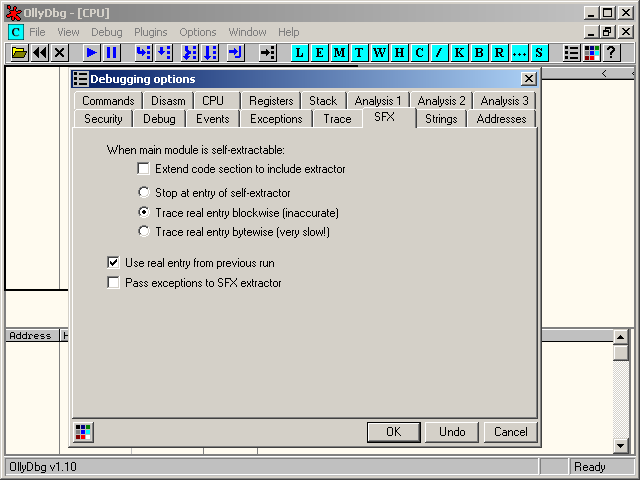

OllyDbg - SFX

When an executable is unpacked, OllyDbg will pause at the entry point. In case of packed executable, the SFX option will help finding the OEP.

Go to Options > Debugging Options > SFX and check one of these options:

  • Trace real entry blockwise: this method is quicker but inaccurate
  • Trace real entry bytewise: this method will be accurate but slow

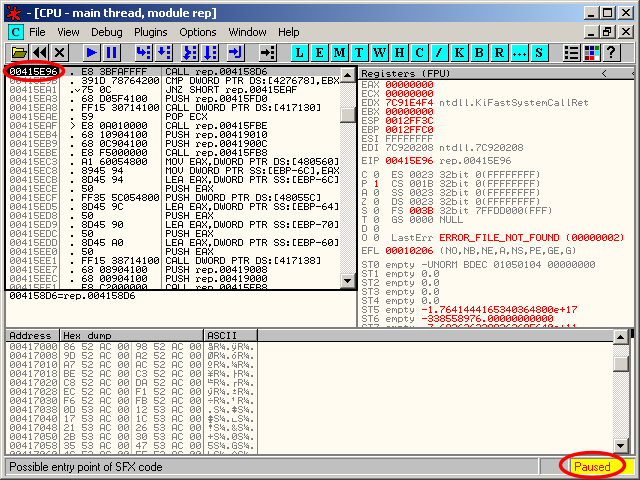

After a short while, OllyDbg pauses at the found EOP:
