Description

Among the different anti-reverse / anti-debugging techniques, there is one which is called the Thread Local Storage (TLS) callback.

TLS callback functions are actually executed before executing code at the traditional Original Entry Point (OEP).

Bypassing the TLS callback anti-debugging technique

Modifying OllyDbg's default options

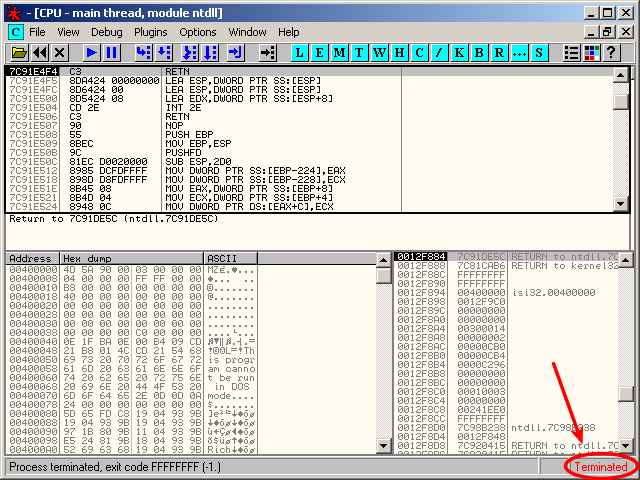

If you try to load such a malware in OllyDbg with the default options, you will notice that it stops (see the Terminated status):

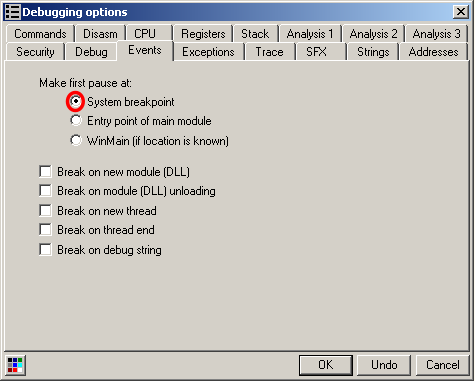

On way to bypass it is to reconfigure OllyDbg to pause at "system breakpoint" instead of the default "WinMain":

Finding the TLS callback

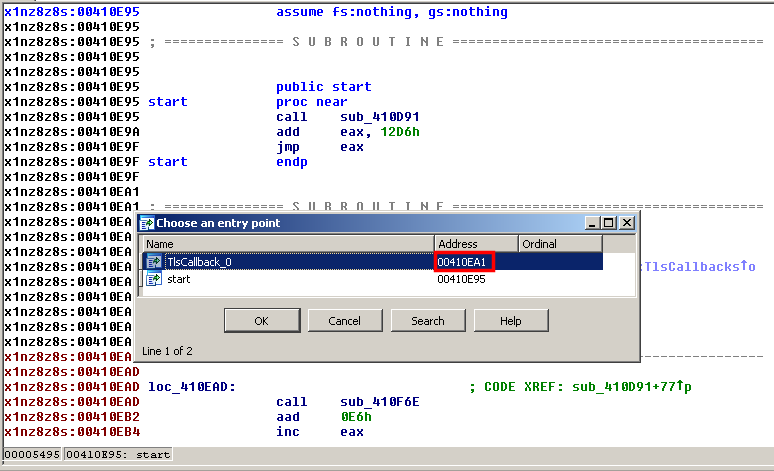

To find the TLS callback, open the malware in IDA Pro and press Ctrl+E:

You can also use pescanner.py:

$ ./pescanner.py /data/tmp/Malware/isi32.exe
################################################################################
Record 0
################################################################################

Meta-data
================================================================================
File:    /data/tmp/Malware/isi32.exe
Size:    21873 bytes
Type:    PE32 executable (GUI) Intel 80386, for MS Windows
MD5:     7a4d1babde751f080cc65a306a0ae79c
SHA1:    dafe57b9c86466f687b91e153bdec7838fb70d35
ssdeep:
Date:    0x47EC14D6 [Thu Mar 27 21:42:46 2008 UTC]
EP:      0x410e95 x1nz8z8s 3/4 [SUSPICIOUS]
CRC:     Claimed: 0x13165, Actual: 0x13165
Packers: EXECryptor 2.2.4 -> Strongbit/SoftComplete Development

TLS callbacks
================================================================================
    0x410ea1

Sections
================================================================================
Name       VirtAddr     VirtSize     RawSize      Entropy
--------------------------------------------------------------------------------
.packed    0x1000       0x7000       0x0          0.000000    [SUSPICIOUS]
.RLPack    0x8000       0x3000       0x0          0.000000    [SUSPICIOUS]
10rntbk3   0xb000       0x1000       0x15         4.070656
x1nz8z8s   0xc000       0x5000       0x4f71       7.961965    [SUSPICIOUS]

Using Olly Advanced

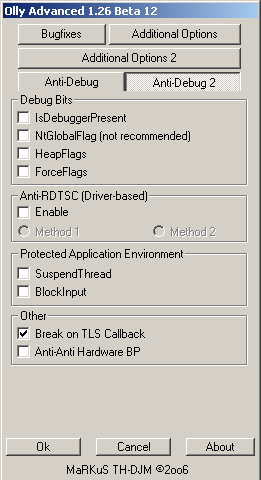

You can also use the Olly Advanced plugin in OllyDbg to setup the "Break on TLS Callback" option:
