Kernel

Description

INCOMPLETE SECTION OR ARTICLE
This section/article is being written and is therefore not complete.
Thank you for your comprehension.

Environment

Possible configurations

When the kernel is being debugged, the OS is frozen. Hence, the debugging console should be run on a separate host. Possible configurations are:


Connect 2 Windows virtual machines on a Linux host

Environment

This setup has been tested in the following environment:

Physical Host Linux Debian Jessie 64bit
Virtualisation VMware WorkStation 11 for Linux 64bit
Debugger WinDbg running on Windows 7 64bit
Debuggee Windows 7 64bit

Configuration of the debugger

On the debugger, follow the below configuration steps:

  1. Shut the VM down
  2. Edit virtual machine settings
  3. Add Hardware > Serial Port

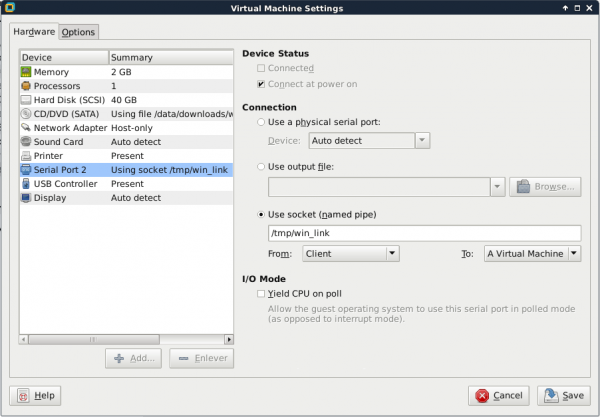

  4. Configure as follows:


    Warning
    Notice that Serial Port 2 has been created. This is important because it means we will need to user COM2 instead of COM1 for the configuration.

  5. Start the virtual machine
  6. Start WinDbg
  7. Press Ctrl+K to invoke the kernel debugging menu.

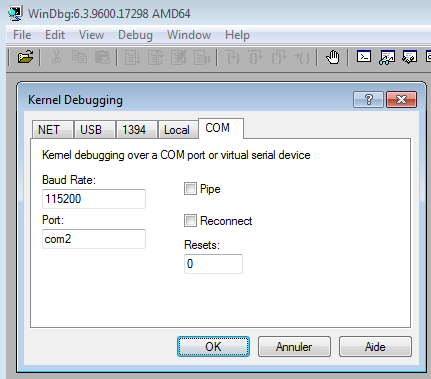

  8. Ensure Baud Rate and Port are respectively set to 115200 and com2 (or whatever port you has been defined previously) and that both pipe and reconnect options are unchecked:

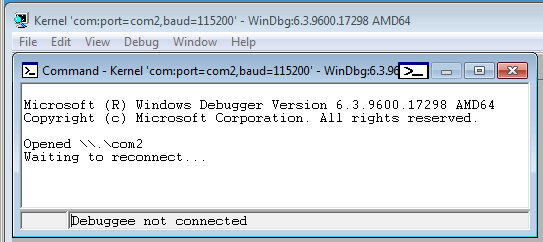

  9. When you click OK, you should be displayed with the following screen:


Configuration of the debuggee

Follow the below configuration steps:

  1. Run bcdedit. You should have 2 profiles (bootmgr and current) as follows:
    C:\>bcdedit

    Windows Boot Manager
    --------------------
    identificateur          {bootmgr}
    device                  partition=\Device\HarddiskVolume1
    description             Windows Boot Manager
    locale                  fr-FR
    inherit                 {globalsettings}
    default                 {default}
    resumeobject            {f567f5a5-ddcd-11e4-8b74-ed09eab0b322}
    displayorder            {default}
                            {current}
    toolsdisplayorder       {memdiag}
    timeout                 30

    Windows Boot Loader
    -------------------
    identificateur          {current}
    device                  partition=C:
    path                    \Windows\system32\winload.exe
    description             Windows 7
    locale                  fr-FR
    inherit                 {bootloadersettings}
    recoverysequence        {f567f5a7-ddcd-11e4-8b74-ed09eab0b322}
    recoveryenabled         Yes
    osdevice                partition=C:
    systemroot              \Windows
    resumeobject            {f567f5a5-ddcd-11e4-8b74-ed09eab0b322}
    nx                      OptIn

  2. Duplicate the current profile to create a new boot profile that we will use to debug the kernel:
    C:\>bcdedit.exe /copy {current} /d "Windows 7 with debug"
    The entry was successfully copied to {f567f5a5-ddcd-11e4-8b74-ed09eab0b322}.

  3. Activate the debug profile (replace the profile ID with the one you got from the previous command):
    C:\>bcdedit.exe /debug {f567f5a5-ddcd-11e4-8b74-ed09eab0b322} on
    The operation completed successfully.

  4. Specify the port (2 for COM2, to be eventually replaced with the port defined previously) and baudrate (default to 115200) for the serial connection:
     C:\>bcdedit /dbgsettings serial debugport:2 baudrate:115200
     The operation completed successfully.

  5. Check that your settings are correct:
    C:\>bcdedit /dbgsettings
    debugtype               Serial
    debugport               2
    baudrate                115200
    The operation completed successfully.

    C:\>bcdedit

    Windows Boot Manager
    --------------------
    identificateur          {bootmgr}
    device                  partition=\Device\HarddiskVolume1
    description             Windows Boot Manager
    locale                  fr-FR
    inherit                 {globalsettings}
    default                 {default}
    resumeobject            {f567f5a5-ddcd-11e4-8b74-ed09eab0b322}
    displayorder            {default}
                            {current}
    toolsdisplayorder       {memdiag}
    timeout                 30

    Windows Boot Loader
    -------------------
    identificateur          {default}
    device                  partition=C:
    path                    \Windows\system32\winload.exe
    description             Windows 7
    locale                  fr-FR
    inherit                 {bootloadersettings}
    recoverysequence        {f567f5a7-ddcd-11e4-8b74-ed09eab0b322}
    recoveryenabled         Yes
    osdevice                partition=C:
    systemroot              \Windows
    resumeobject            {f567f5a5-ddcd-11e4-8b74-ed09eab0b322}
    nx                      OptIn

    Windows Boot Loader
    -------------------
    identificateur          {current}
    device                  partition=C:
    path                    \Windows\system32\winload.exe
    description             Windows 7 with debug
    locale                  fr-FR
    inherit                 {bootloadersettings}
    recoverysequence        {f567f5a7-ddcd-11e4-8b74-ed09eab0b322}
    recoveryenabled         Yes
    osdevice                partition=C:
    systemroot              \Windows
    resumeobject            {f567f5a5-ddcd-11e4-8b74-ed09eab0b322}
    nx                      OptIn
    debug                   Yes

  6. Shut the virtual machine down
  7. Edit virtual machine settings
  8. Add Hardware > Serial Port

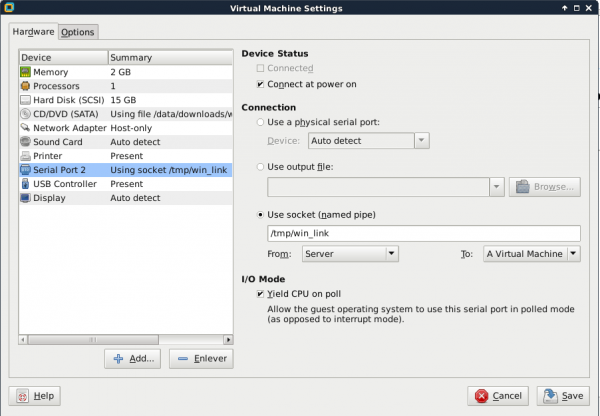

  9. Configure as follows

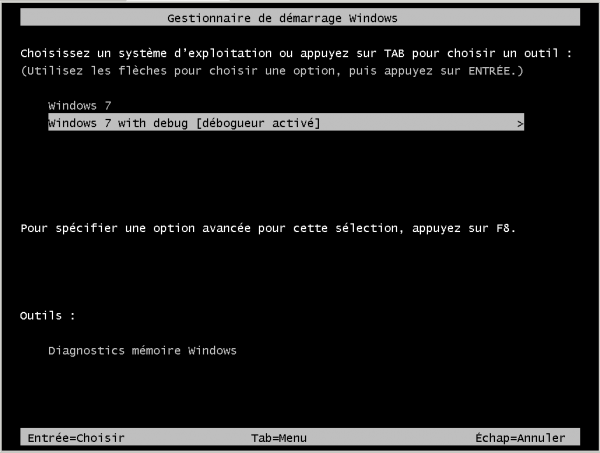

  10. Start the virtual machine and select the debugging profile from the boot sequence:

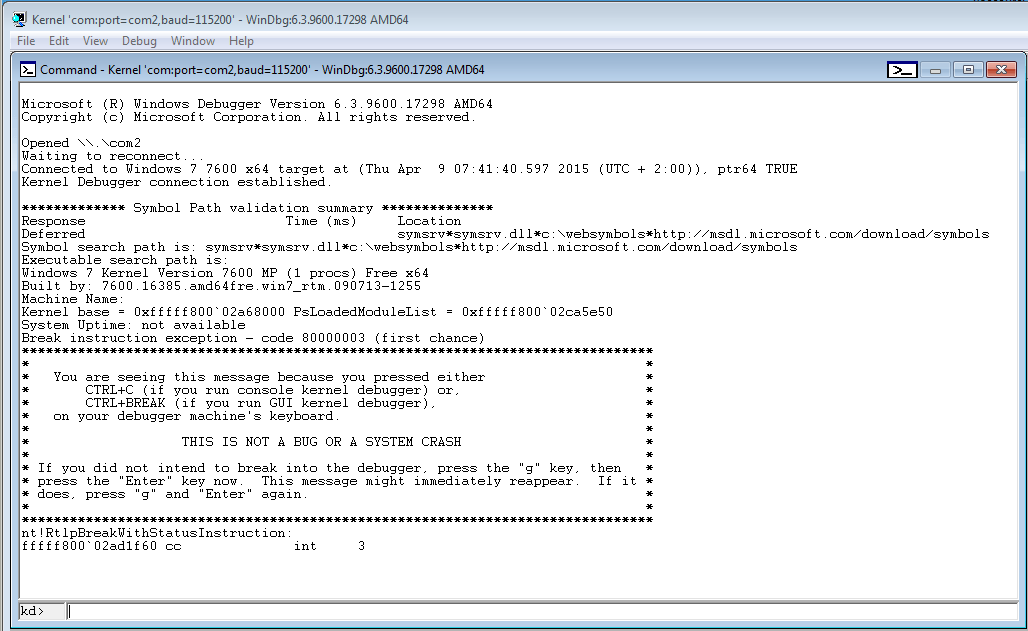

Back on the debugger virtual machine, you should be able to see the success of the connection:


Connect a Windows virtual machine to a Windows physical host

INCOMPLETE SECTION OR ARTICLE
This section/article is being written and is therefore not complete.
Thank you for your comprehension.
