Receiver

Description

INCOMPLETE SECTION OR ARTICLE
This section/article is being written and is therefore not complete.
Thank you for your comprehension.

Antennas

Placement

3D printed support


zip ties / heat shrink

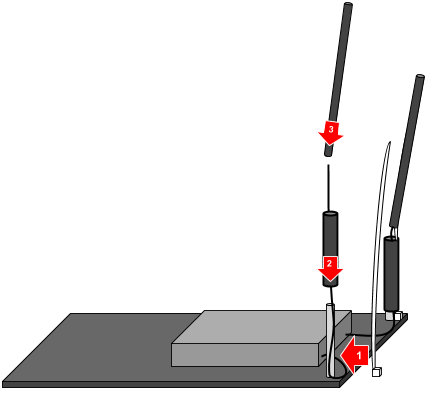

A possible option is to use zip ties and heat shrink to protect your radio receiver antennas, as follows:


Here is what it looks like:

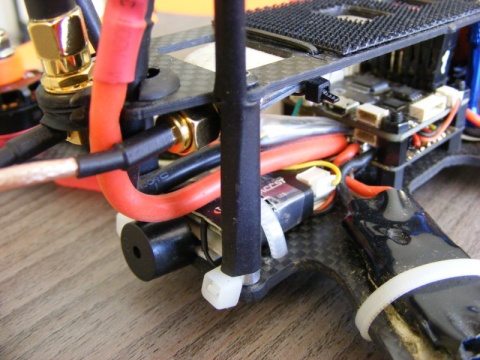

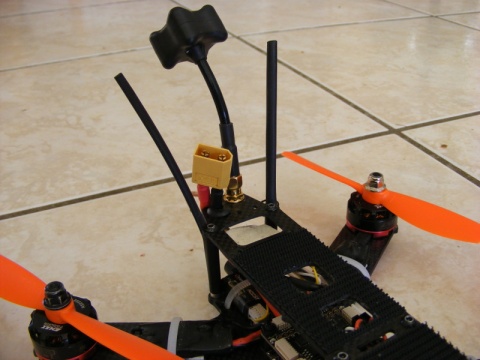

Protect-antennas-zip-ties-heat-shrink-photo.jpg Protect-antennas-zip-ties-heat-shrink-photo-2.jpg

You can also do like MrSteele:


Here is what it looks like:

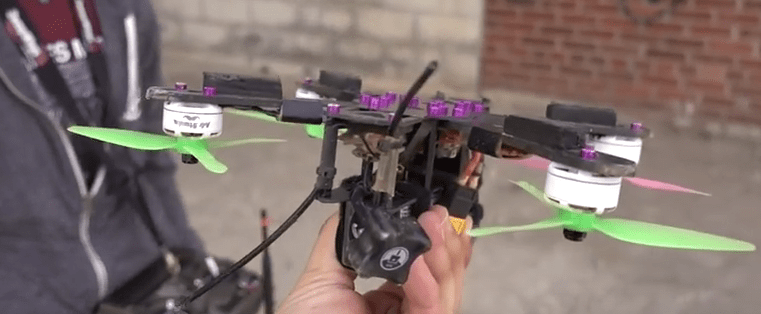

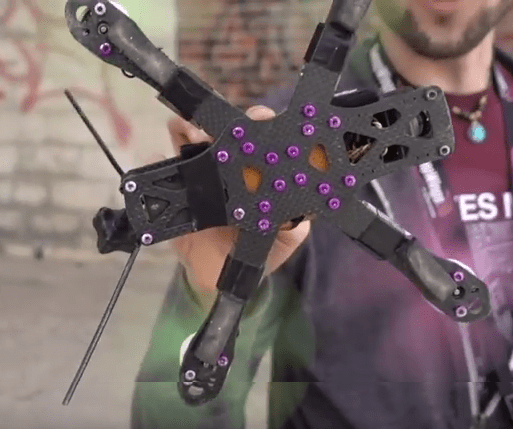

Protect-antennas-zip-ties-heat-shrink-option2.png Protect-antennas-zip-ties-heat-shrink-option2-1.png

Repair antenna

It happens frequently that your antennas are cut by the propellers (e.g. after a crash). To repair an antenna, all you need to do is to remove the shield protecting the antenna to leave the antenna wire exposed with a specific length, given by the following formula:

speed of light (in m/s) / freq (in Hz) / 4

where

  • speed of light: 299,792,458 m/s
  • freq: 2.4 GHz = 2,400,000,000 Hz

Applied to 2.4Ghz radio signal, it gives us:

299,792,458 / 2,400,000,000 / 4 = 0.03122838104 m = 31.23 mm

The antennas on the Frsky X4RSB receiver have the following layers:


Here is how it should look like:
