FrSky X4RSB

Specification

INCOMPLETE SECTION OR ARTICLE
This section/article is being written and is therefore not complete.
Thank you for your comprehension.

Bind and failsafe

Bind with Taranis X9D Plus

On your Taranis radio:

  • Select the appropriate model
  • Go to the Model Selection page

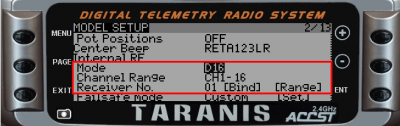

  • Scroll down to the Internal RF section and choose the following options:

  • Click on Bind. The radio will now beep continuously.

On the receiver:

  • Hold the F/S button and plug a 5V power source

  • The LED on the receiver should blink.
  • Now, press ENT on your Taranis. The sound should stop.
  • Unplug the 5V source from the receiver, turn off your radio.
  • Now, when you are turning on both the radio receiver and the radio, the receiver's LED should turn green.

Failsafe

Please check this page.

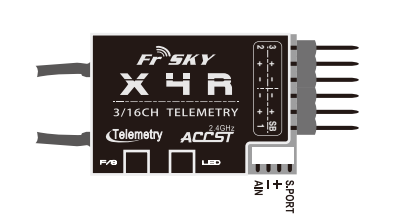

PWM and SBUS connections

INCOMPLETE SECTION OR ARTICLE
This section/article is being written and is therefore not complete.
Thank you for your comprehension.

Comments

Keywords: drones quadcopter fpv racing receiver frsky x4rsb
