From AlienVault SIEM alarms to the identification of infected files on the compromised machine

Description

This article shows how to dig into the memory dump using volatility to identify malwares found on a Windows XP machine, initially detected with the AlienVault SIEM.

Steps

SIEM alarms

This example shows how I identified the infected files on a compromised machine from AlienVault SIEM alarms.

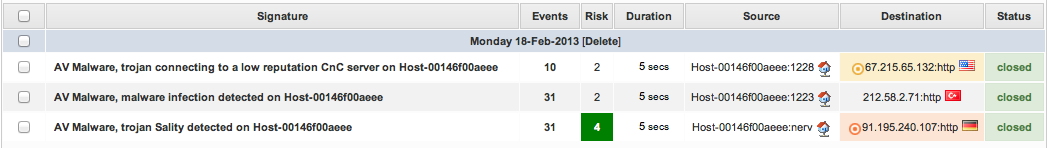

Here are the alarms that triggered:


Basically 2 types of payloads were available in the SIEM console:

GET /images/logos.gif?163bb6=4371234 HTTP/1.1
User-Agent: Opera/8.89 (Windows NT 6.0; U; en)
Host: www.serdarsaracoglu.com
Cache-Control: no-cache

GET /?url=vanivilashospital%2Ecom%2Fimages%2Flogos%2Egif%3F163230%3D2909280 HTTP/1.1
User-Agent: Opera/8.89 (Windows NT 6.0; U; en)
Connection: Keep-Alive
Cache-Control: no-cache
Host: guidetest.a.id.opendns.com

These events were triggered by following signatures:

File: emerging-trojan.rules
Rule: alert tcp $HOME_NET any -> $EXTERNAL_NET $HTTP_PORTS
    msg: "ET TROJAN Sality - Fake Opera User-Agent (Opera/8.89)"
    flow: established,to_server
    content: "GET"
    http_method:
    content: "User-Agent|3a| Opera/8.89 (Windows NT 6.0|3b| U|3b| en)|0d0a|"
    http_header:
    reference: url,www.spywareremove.com/removeTrojanDownloaderSalityG.html
    reference: url,www.microsoft.com/security/portal/beta/Threat/Encyclopedia/Entry.aspx?Name=Virus%3AWin32%2FSality.AM
    reference: url,doc.emergingthreats.net/2009530
    classtype: trojan-activity
    sid: 2009530
    rev: 4
File: emerging_pro-trojan.rules
Rule: alert tcp $HOME_NET any -> $EXTERNAL_NET $HTTP_PORTS
    msg: "ETPRO TROJAN Virus.Win32.Sality.baka Checkin"
    flow: to_server,established
    content: ".gif?"
    http_uri:
    pcre: "/\x2egif\x3f([0-9a-f])+?\x3d\x2e?\d+?$/U"
    content: "User-Agent|3a| Opera/8.89"
    http_header:
    reference: md5,ef7e7ddd7efd03f5d3aa5e4d1f806ada
    reference: md5,5503babd8f756cf0b54ca96d112a2212
    classtype: trojan-activity
    sid: 2805494
    rev: 1

Perform memory dump

In the meantime, I have dumped the memory of the machine (hopefully a virtual machine ;-) using mdd_1.3.exe.

This can be also performed remotely, using PsExec:

C:\> psexec \\192.168.1.27 -u administrator -p password -c mdd_1.3.exe -q -o D:\image.img

PS: You can also use Dumpit but I haven't found a way to use it remotely because of the interactive menu (you have to validate the menu from the console Dumpit is started from and there is no option (i.e. -y) to force the acceptance).

Process identification

Let's identify processes responsible for the connections seen in the SIEM

$ python vol.py -f ~/memdump/infected.img connscan | egrep "67\.215|212\.58|91\.195"
Volatile Systems Volatility Framework 2.2
0x01e20ba0 192.168.1.27:1298         67.215.65.132:31960       2944
0x01e6b008 192.168.1.27:1226         91.195.240.107:80         532
0x01eac008 192.168.1.27:1223         212.58.2.71:80            532
0x0214b140 192.168.1.27:1262         67.215.65.132:31960       2944
0x0415b140 192.168.1.27:1262         67.215.65.132:31960       2944
0x09a68ba0 192.168.1.27:1298         67.215.65.132:31960       2944
0x14ee7ba0 192.168.1.27:1298         67.215.65.132:31960       2944
0x15eb4008 192.168.1.27:1223         212.58.2.71:80            532

The connscan plugin confirms that there are 2 processes (PID: 532 and 2944) that are responsible of the malicious traffic seen in the alarms. What are these 2 processes?

$ python vol.py -f ~/memdump/infected.img pslist | egrep "532|2944"
Volatile Systems Volatility Framework 2.2
0x81f015d0 vmtoolsd.exe            532    272     38      563      0      0 2013-02-18 20:54:52
0x81cbdb20 netsh.exe              3860    532      0 --------      0      0 2013-02-18 21:15:17  2013-02-18 21:15:18
0x81c75020 notepad.exe            3052    532      0 --------      0      0 2013-02-18 21:15:20  2013-02-18 21:15:20

Very interesting: we can guess that process 532 is hiding in vmtoolsd.exe (PID532). And PID 2944 is hidden (confirmed by the psxview plugin)

$ python vol.py -f ~/memdump/infected.img psxview
Volatile Systems Volatility Framework 2.2
Offset(P)  Name                    PID pslist psscan thrdproc pspcdid csrss
---------- -------------------- ------ ------ ------ -------- ------- -----
[REMOVED]
0x023a6da0 mcrshl.exe             2944 False  True   False    True    True
[REMOVED]
0x151b6da0 mcrshl.exe             2944 False  True   False    False   False
[REMOVED]

To visualize the processes and dependencies, you can install Graphviz and generate an image as follows:

$ python vol.py -f ~/memdump/infected.img psscan --output=dot --output-file=output/test.dot
$ dot -Tpng test.dot -o test.png

Here is an extract:


PID 532: vmtoolsd.exe

Yara plugin

Obviously here, the presence of the strings "logos.gif" and "Opera/8.89" can be good indicators for a Yara signature:

$ cat sality.yara
rule sality
{
    strings:
        $a = "logos.gif"
        $b = "Opera/8.89"
    condition:
        any of them
}

Time to identify processes containing these strings:

$ python vol.py -f ~/memdump/infected.img yarascan -y ~/pentest/yara-sigs/sality.yara
Volatile Systems Volatility Framework 2.2
Rule: sality
Owner: Process vmtoolsd.exe Pid 532
0x031591a7  6c 6f 67 6f 73 2e 67 69 66 00 68 74 74 70 3a 2f   logos.gif.http:/
0x031591b7  2f 77 77 77 2e 64 6f 67 75 73 2d 70 6c 61 73 74   /www.dogus-plast
0x031591c7  69 6b 2e 63 6f 6d 2f 6c 6f 67 6f 73 2e 67 69 66   ik.com/logos.gif
0x031591d7  00 68 74 74 70 3a 2f 2f 6d 61 63 65 64 6f 6e 69   .http://macedoni
[REMOVED]
Owner: Process vmtoolsd.exe Pid 532
0x031592ad  6c 6f 67 6f 73 2e 67 69 66 00 00 00 00 00 00 00   logos.gif.......
0x031592bd  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
0x031592cd  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
0x031592dd  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
Rule: sality
Owner: Process vmtoolsd.exe Pid 532
0x031672c8  4f 70 65 72 61 2f 38 2e 38 39 20 28 57 69 6e 64   Opera/8.89.(Wind
0x031672d8  6f 77 73 20 4e 54 20 36 2e 30 3b 20 55 3b 20 65   ows.NT.6.0;.U;.e
0x031672e8  6e 29 00 00 4d 50 52 00 4e 74 51 75 65 72 79 53   n)..MPR.NtQueryS
0x031672f8  79 73 74 65 6d 49 6e 66 6f 72 6d 61 74 69 6f 6e   ystemInformation
[REMOVED]
Rule: sality
Owner: Process vmtoolsd.exe Pid 532
0x02073291  6c 6f 67 6f 73 2e 67 69 66 00 27 40 00 00 00 00   logos.gif.'@....
0x020732a1  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
0x020732b1  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
0x020732c1  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
Rule: sality
Owner: Process vmtoolsd.exe Pid 532
0x0457e8de  6c 6f 67 6f 73 2e 67 69 66 3f 31 36 33 62 62 36   logos.gif?163bb6
0x0457e8ee  3d 34 33 37 31 32 33 34 00 00 00 00 00 00 00 00   =4371234........
0x0457e8fe  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
0x0457e90e  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
[REMOVED]

Use Malfind to dump the processes

What does Malfind say about this process?

$ python vol.py -f ~/memdump/infected.img malfind -p 532 -D output/
Volatile Systems Volatility Framework 2.2
Process: vmtoolsd.exe Pid: 532 Address: 0x3140000
Vad Tag: VadS Protection: PAGE_EXECUTE_READWRITE
Flags: CommitCharge: 4147, MemCommit: 1, PrivateMemory: 1, Protection: 6

0x03140000  4d 5a 90 00 03 00 00 00 04 00 00 00 ff ff 00 00   MZ..............
0x03140010  b8 00 00 00 00 00 00 00 40 00 00 00 00 00 00 00   [email protected]
0x03140020  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
0x03140030  00 00 00 00 00 00 00 00 00 00 00 00 e0 00 00 00   ................

0x3140000 4d               DEC EBP
0x3140001 5a               POP EDX
0x3140002 90               NOP
0x3140003 0003             ADD [EBX], AL
0x3140005 0000             ADD [EAX], AL
0x3140007 000400           ADD [EAX+EAX], AL
0x314000a 0000             ADD [EAX], AL
0x314000c ff               DB 0xff
0x314000d ff00             INC DWORD [EAX]
0x314000f 00b800000000     ADD [EAX+0x0], BH
0x3140015 0000             ADD [EAX], AL
0x3140017 004000           ADD [EAX+0x0], AL
0x314001a 0000             ADD [EAX], AL
0x314001c 0000             ADD [EAX], AL
0x314001e 0000             ADD [EAX], AL
0x3140020 0000             ADD [EAX], AL
0x3140022 0000             ADD [EAX], AL
0x3140024 0000             ADD [EAX], AL
0x3140026 0000             ADD [EAX], AL
0x3140028 0000             ADD [EAX], AL
0x314002a 0000             ADD [EAX], AL
0x314002c 0000             ADD [EAX], AL
0x314002e 0000             ADD [EAX], AL
0x3140030 0000             ADD [EAX], AL
0x3140032 0000             ADD [EAX], AL
0x3140034 0000             ADD [EAX], AL
0x3140036 0000             ADD [EAX], AL
0x3140038 0000             ADD [EAX], AL
0x314003a 0000             ADD [EAX], AL
0x314003c e000             LOOPNZ 0x314003e
0x314003e 0000             ADD [EAX], AL

Process: vmtoolsd.exe Pid: 532 Address: 0x2060000
Vad Tag: VadS Protection: PAGE_EXECUTE_READWRITE
Flags: CommitCharge: 1, MemCommit: 1, PrivateMemory: 1, Protection: 6

0x02060000  e8 00 00 00 00 5d 81 ed 05 10 40 00 8d 85 2f 10   .....][email protected]/.
0x02060010  40 00 50 6a 00 6a 00 ff 95 27 10 40 00 6a ff ff   @.Pj.j...'[email protected]
0x02060020  95 2b 10 40 00 eb f6 df e9 80 7c 46 24 80 7c 76   [email protected]|F$.|v
0x02060030  6d 74 6f 6f 6c 73 64 2e 65 78 65 4d 5f 35 33 32   mtoolsd.exeM_532

0x2060000 e800000000       CALL 0x2060005
0x2060005 5d               POP EBP
0x2060006 81ed05104000     SUB EBP, 0x401005
0x206000c 8d852f104000     LEA EAX, [EBP+0x40102f]
0x2060012 50               PUSH EAX
0x2060013 6a00             PUSH 0x0
0x2060015 6a00             PUSH 0x0
0x2060017 ff9527104000     CALL DWORD [EBP+0x401027]
0x206001d 6aff             PUSH -0x1
0x206001f ff952b104000     CALL DWORD [EBP+0x40102b]
0x2060025 ebf6             JMP 0x206001d
0x2060027 dfe9             FUCOMIP ST0, ST1
0x2060029 807c462480       CMP BYTE [ESI+EAX*2+0x24], 0x80
0x206002e 7c76             JL 0x20600a6
0x2060030 6d               INS DWORD [ES:EDI], DX
0x2060031 746f             JZ 0x20600a2
0x2060033 6f               OUTS DX, DWORD [ESI]
0x2060034 6c               INS BYTE [ES:EDI], DX
0x2060035 7364             JAE 0x206009b
0x2060037 2e657865         JS 0x20600a0 ;NOT TAKEN
0x206003b 4d               DEC EBP
0x206003c 5f               POP EDI
0x206003d 35               DB 0x35
0x206003e 3332             XOR ESI, [EDX]

Process: vmtoolsd.exe Pid: 532 Address: 0x2050000
Vad Tag: VadS Protection: PAGE_EXECUTE_READWRITE
Flags: CommitCharge: 2, MemCommit: 1, PrivateMemory: 1, Protection: 6

0x02050000  e8 00 00 00 00 5d 81 ed 05 10 40 00 58 2d a0 1a   .....][email protected]
0x02050010  00 00 89 85 43 12 40 00 80 bd 73 27 40 00 00 75   [email protected]'@..u
0x02050020  19 c7 85 3a 14 40 00 7b 1d 80 7c c7 85 29 14 40   ...:[email protected]{..|..)[email protected]
0x02050030  00 40 ae 80 7c e9 82 00 00 00 33 db 64 67 8b 1e   [email protected]|.....3.dg..

0x2050000 e800000000       CALL 0x2050005
0x2050005 5d               POP EBP
0x2050006 81ed05104000     SUB EBP, 0x401005
0x205000c 58               POP EAX
0x205000d 2da01a0000       SUB EAX, 0x1aa0
0x2050012 898543124000     MOV [EBP+0x401243], EAX
0x2050018 80bd7327400000   CMP BYTE [EBP+0x402773], 0x0
0x205001f 7519             JNZ 0x205003a
0x2050021 c7853a1440007b1d807c MOV DWORD [EBP+0x40143a], 0x7c801d7b
0x205002b c7852914400040ae807c MOV DWORD [EBP+0x401429], 0x7c80ae40
0x2050035 e982000000       JMP 0x20500bc
0x205003a 33db             XOR EBX, EBX
0x205003c 64               DB 0x64
0x205003d 67               DB 0x67
0x205003e 8b               DB 0x8b
0x205003f 1e               PUSH DS

Let's scan the 3 files generated by the malfind plugin:

$ ls -lh
total 33200
-rw-r--r--  1 sebastiendamaye  staff   8,0K 23 fév 23:14 process.0x81f015d0.0x2050000.dmp
-rw-r--r--  1 sebastiendamaye  staff   4,0K 23 fév 23:14 process.0x81f015d0.0x2060000.dmp
-rw-r--r--  1 sebastiendamaye  staff    16M 23 fév 23:14 process.0x81f015d0.0x3140000.dmp
  • process.0x81f015d0.0x2050000.dmp: Virustotal 9/46 (Win32.Sality.PP)
  • process.0x81f015d0.0x2060000.dmp: Virustotal 8/46 (Win32.Sality.Injected.A)
  • process.0x81f015d0.0x3140000.dmp: Virustotal 13/45 (Win32:Sality-GR)

PID 2944: mcrshl.exe

Dump process

Since PID 2944 is hidden, we have to dump it using the offset found with the psxview command:

Offset(P)  Name                    PID pslist psscan thrdproc pspcdid csrss
---------- -------------------- ------ ------ ------ -------- ------- -----
0x023a6da0 mcrshl.exe             2944 False  True   False    True    True
0x151b6da0 mcrshl.exe             2944 False  True   False    False   False

Let's dump the processes using the offset found above:

$ python vol.py -f ~/memdump/infected.img procexedump -o 0x151b6da0 -D output/
Volatile Systems Volatility Framework 2.2
Process(V) ImageBase  Name                 Result
---------- ---------- -------------------- ------
---------- ---------- -------------------- Error: Cannot acquire process AS
$ python vol.py -f ~/memdump/infected.img procexedump -o 0x023a6da0 -D output/
Volatile Systems Volatility Framework 2.2
Process(V) ImageBase  Name                 Result
---------- ---------- -------------------- ------
0x821a6da0 0x00010000 mcrshl.exe           OK: executable.2944.exe

Here are the results:

PID Name Virustotal Anubis Description
2944 mcrshl.exe link (7/46) link This process is known as McAfee MISP Shell and belongs to software McAfee SecurityCenter by McAfee (www.mcafee.com). However, McAfee was not installed on the machine. The virus was hiding under a fake antivirus!

File location

The file is located in C:\WINDOWS\system32\:

$ python vol.py -f ~/memdump/infected.img dlllist -o 0x023a6da0
Volatile Systems Volatility Framework 2.2
************************************************************************
mcrshl.exe pid:   2944
Command line : "C:\WINDOWS\system32\mcrshl.exe"
Service Pack 3

Base             Size Path
---------- ---------- ----
0x00010000    0x30000 C:\WINDOWS\system32\mcrshl.exe
0x7c910000    0xb9000 C:\WINDOWS\system32\ntdll.dll
0x7c800000   0x106000 C:\WINDOWS\system32\kernel32.dll
0x7e390000    0x91000 C:\WINDOWS\system32\user32.dll
0x77ef0000    0x49000 C:\WINDOWS\system32\GDI32.dll
0x77da0000    0xac000 C:\WINDOWS\system32\advapi32.dll
0x77e50000    0x93000 C:\WINDOWS\system32\RPCRT4.dll
0x77fc0000    0x11000 C:\WINDOWS\system32\Secur32.dll
0x774a0000   0x13e000 C:\WINDOWS\system32\ole32.dll
0x77be0000    0x58000 C:\WINDOWS\system32\msvcrt.dll
0x76320000    0x1d000 C:\WINDOWS\system32\IMM32.DLL
0x770e0000    0x8b000 C:\WINDOWS\system32\oleaut32.dll
0x7c9d0000   0x825000 C:\WINDOWS\system32\SHELL32.dll
0x77f40000    0x76000 C:\WINDOWS\system32\SHLWAPI.dll
0x77390000   0x103000 C:\WINDOWS\WinSxS\x86_Microsoft.Windows.Common-Controls_6595b64144ccf1df_6.0.2600.6028_x-ww_61e65202\comctl32.dll
0x58b50000    0x9a000 C:\WINDOWS\system32\comctl32.dll
0x45180000   0x133000 C:\WINDOWS\system32\urlmon.dll
0x40b40000   0x1eb000 C:\WINDOWS\system32\iertutil.dll
0x404a0000    0xe6000 C:\WINDOWS\system32\WININET.dll
0x009f0000     0x9000 C:\WINDOWS\system32\Normaliz.dll
0x719f0000    0x17000 C:\WINDOWS\system32\WS2_32.dll
0x719e0000     0x8000 C:\WINDOWS\system32\WS2HELP.dll
0x71990000    0x40000 C:\WINDOWS\system32\mswsock.dll
0x62e40000    0x59000 C:\WINDOWS\system32\hnetcfg.dll
0x719d0000     0x8000 C:\WINDOWS\System32\wshtcpip.dll
0x77b50000    0x22000 C:\WINDOWS\system32\Apphelp.dll
0x77bd0000     0x8000 C:\WINDOWS\system32\VERSION.dll
0x74cd0000    0x1e000 C:\WINDOWS\system32\wshbth.dll
0x778e0000    0xf8000 C:\WINDOWS\system32\SETUPAPI.dll
0x76ed0000    0x27000 C:\WINDOWS\system32\DNSAPI.dll
0x76d10000    0x19000 C:\WINDOWS\system32\iphlpapi.dll
0x76cf0000    0x18000 C:\WINDOWS\system32\MPRAPI.dll
0x77c90000    0x32000 C:\WINDOWS\system32\ACTIVEDS.dll
0x76dc0000    0x25000 C:\WINDOWS\system32\adsldpc.dll
0x6fee0000    0x55000 C:\WINDOWS\system32\NETAPI32.dll
0x76f10000    0x2d000 C:\WINDOWS\system32\WLDAP32.dll
0x76ac0000    0x11000 C:\WINDOWS\system32\ATL.DLL
0x76e30000     0xe000 C:\WINDOWS\system32\rtutils.dll
0x71b50000    0x13000 C:\WINDOWS\system32\SAMLIB.dll
0x76f60000     0x8000 C:\WINDOWS\System32\winrnr.dll
0x76f70000     0x6000 C:\WINDOWS\system32\rasadhlp.dll

Persistence

Let's dump the hivelist:

$ python vol.py -f ~/memdump/infected.img hivelist
Volatile Systems Volatility Framework 2.2
Virtual    Physical   Name
---------- ---------- ----
0xe2084008 0x0fe6b008 \Device\HarddiskVolume1\Documents and Settings\pilou\Local Settings\Application Data\Microsoft\Windows\UsrClass.dat
0xe1d1fb60 0x0db99b60 \Device\HarddiskVolume1\Documents and Settings\pilou\NTUSER.DAT
0xe19d8380 0x0d091380 \Device\HarddiskVolume1\Documents and Settings\LocalService\Local Settings\Application Data\Microsoft\Windows\UsrClass.dat
0xe1c19508 0x0d644508 \Device\HarddiskVolume1\Documents and Settings\LocalService\NTUSER.DAT
0xe17206d0 0x0cad76d0 \Device\HarddiskVolume1\Documents and Settings\NetworkService\Local Settings\Application Data\Microsoft\Windows\UsrClass.dat
0xe19fb008 0x0d403008 \Device\HarddiskVolume1\Documents and Settings\NetworkService\NTUSER.DAT
0xe196c6b8 0x0a9ca6b8 \Device\HarddiskVolume1\WINDOWS\system32\config\software
0xe1599b60 0x04870b60 \Device\HarddiskVolume1\WINDOWS\system32\config\default
0xe196cb60 0x0a9cab60 \Device\HarddiskVolume1\WINDOWS\system32\config\SECURITY
0xe195eb60 0x0a6e2b60 \Device\HarddiskVolume1\WINDOWS\system32\config\SAM
0xe134f350 0x02f00350 [no name]
0xe1035b60 0x02aa3b60 \Device\HarddiskVolume1\WINDOWS\system32\config\system
0xe102e008 0x02a9d008 [no name]
0x806717a8 0x006717a8 [no name]

HKLM keys are under offset 0xe196c6b8:

$ python vol.py -f ~/memdump/infected.img printkey -o 0xe196c6b8 -K "Microsoft\Windows\CurrentVersion\Run"
Volatile Systems Volatility Framework 2.2
Legend: (S) = Stable   (V) = Volatile

----------------------------
Registry: User Specified
Key name: Run (S)
Last updated: 2013-02-18 21:07:49

Subkeys:

Values:
REG_SZ        BluetoothAuthenticationAgent : (S) rundll32.exe bthprops.cpl,,BluetoothAuthenticationAgent
REG_SZ        SunJavaUpdateSched : (S) "C:\Program Files\Java\jre7\bin\jusched.exe"
REG_SZ        VMware User Process : (S) "C:\Program Files\VMware\VMware Tools\vmtoolsd.exe" -n vmusr
REG_SZ        Mcafee VShield  : (S) mcrshl.exe

We can notice that the identified file (mcrshl.exe) appears in the startup registry keys so that it is automatically started.

Comments

blog comments powered by Disqus
